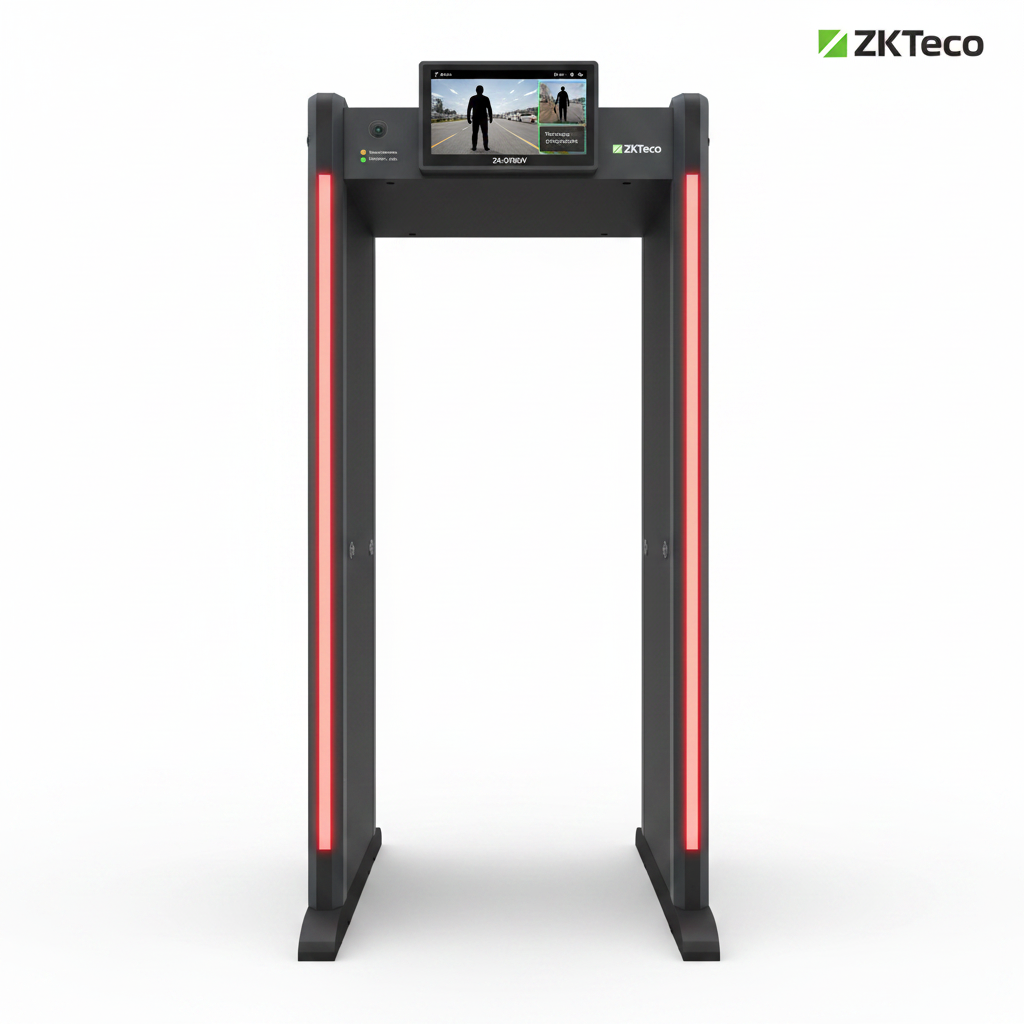

ZKTeco ZK-D3180V — Walk-Through Metal Detector with Embedded 2MP Camera & 7″ LCD

Security screening has always been reactive — an alarm sounds, personnel respond. The ZKTeco ZK-D3180V changes that dynamic entirely. By embedding a 2MP monocular camera directly into the detector frame, the ZK-D3180V doesn’t just alert your team to a threat — it captures a passenger full-face image at the moment of detection, automatically links it to the alarm record, and stores it for review. The result is a complete incident trail, not just a beep.

With 18 detection zones, 500 adjustable sensitivity levels per zone, a large 7″ LCD display, and storage for over 100,000 records, the ZK-D3180V is built for high-traffic venues where security documentation is as important as detection itself — schools, shopping malls, hotels, exhibition centers, and train stations.

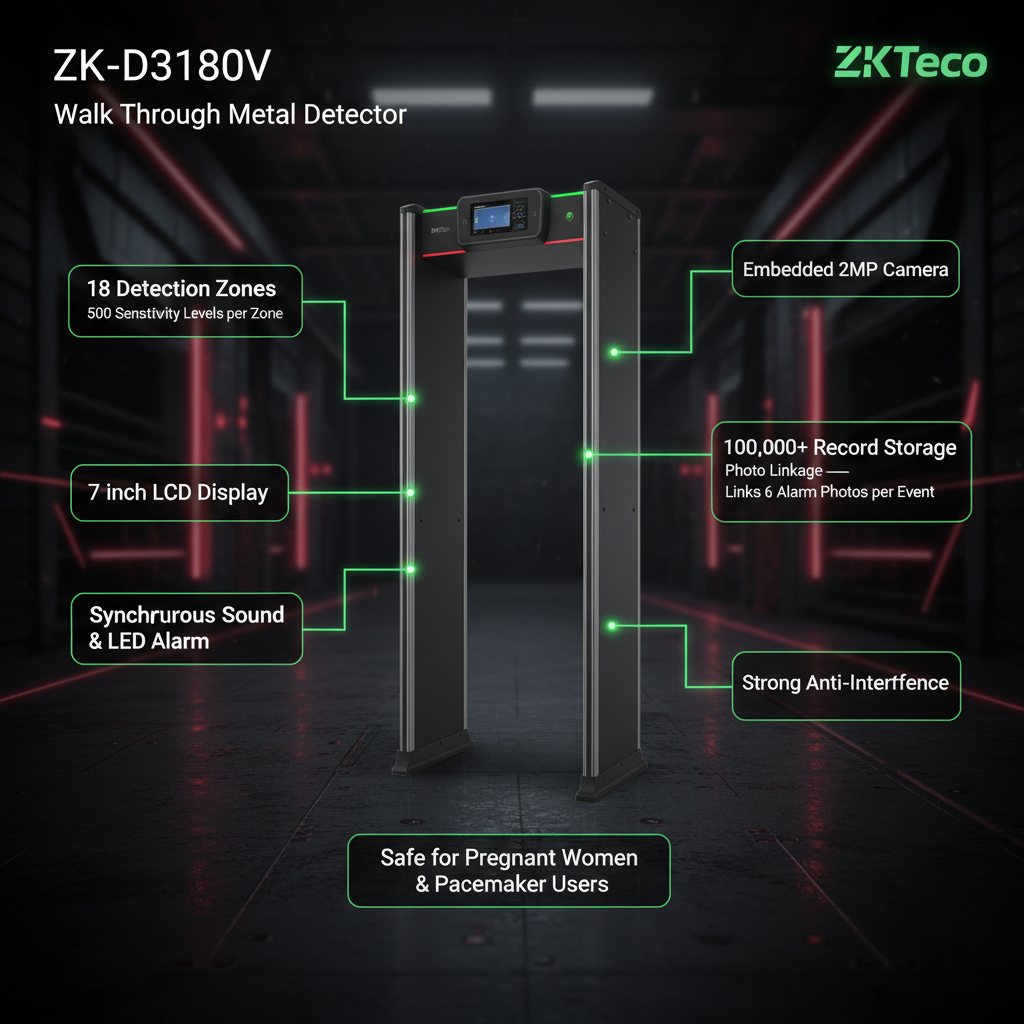

Key Features

• Embedded 2MP Monocular Camera — Captures full-face passenger images at the precise moment of detection, automatically linked to the corresponding alarm record for complete incident documentation.
• Photo Linkage — Up to 6 Alarm Photos per Event — Automatically associates up to 6 snapshots with each alarm event for comprehensive, multi-angle incident reports.
• 100,000+ Record Storage — On-device storage for alarm and pass records with live video and snapshots, enabling historical tracking and security audits.
• 18 Detection Zones with 500 Sensitivity Levels Each — Fine-tune each zone independently for surgical detection accuracy, from coin-sized threats to large metal weapons.
• 7″ LCD Color Display — Large, intuitive interface for real-time monitoring of live video, passenger counts, alarm statistics, channel, date/time, and detection signal strength at a glance.
• Live Video Feed on Display — View live CCTV feed and passenger snapshots directly on the unit’s screen — no separate monitor required.
• Alarm & People Count Statistics — Automatically tracks separate inbound and outbound people counts and alarm event totals for shift reporting.
• Synchronous Sound & LED Alarm — 16 alarm tones (adjustable, 0–100 volume levels, max 80 dB) with simultaneous red LED alerts on both door panels for instant threat notification.
• Automatic & Infrared Detection Modes — Dual IR groups ensure detection triggers only when a person walks through, eliminating false alarms from environmental movement.
• Password Protection — Secure device configuration and settings from unauthorized changes.
• Strong Anti-Interference — Reliable, consistent performance even in electromagnetically challenging environments; multiple units can operate side-by-side.
• Fireproof Enclosure — Flame Retardant ABS Polymer construction meets international fire safety standards.
• Waterproof Bottom — Enhanced base protection for durability in varied operational environments.
• Safe for Human Body — Harmless to pregnant women and pacemaker users (consult manufacturer guidelines).
• TCP/IP Communication — Seamless network integration for centralized monitoring, remote management, and compatibility with existing security infrastructure.
• Self-Diagnosis Program — Continuous health monitoring for consistent, peak-performance operation.
• Remote Control Support — Configure and manage the unit without direct physical access.
• CE, FCC & ISO9001 Certified — Internationally compliant for global deployment.

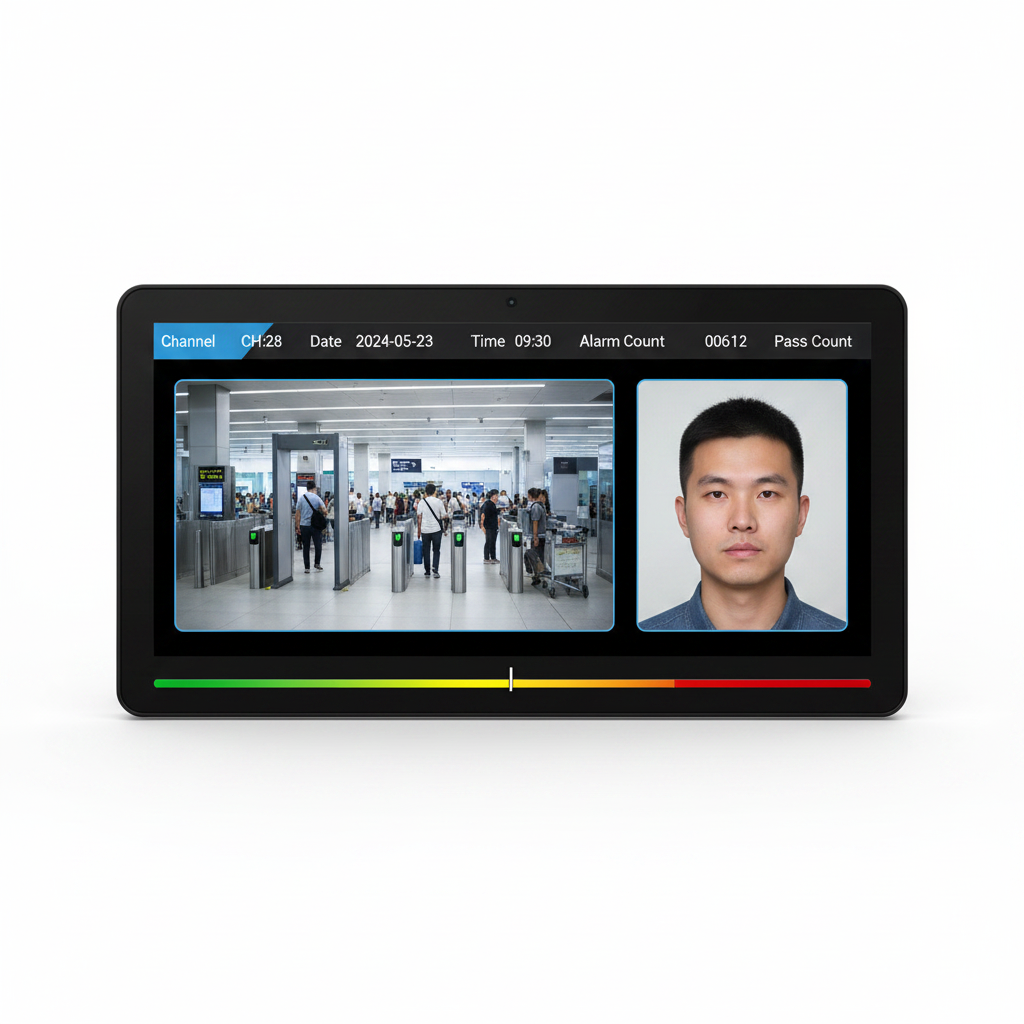

Main Interface at a Glance

The ZK-D3180V’s 7″ LCD provides a comprehensive real-time dashboard: Live Video from the embedded camera · Passenger Snapshot at detection moment · Alarm Count & Pass Count · Date & Time · Channel · Detection Signal Strength Bar with zone-by-zone color gradient · Battery Indicator.

Technical Specifications

• Display: 7″ LCD Color Screen
• Physical Keypad: 5 keys
• Onscreen Control Lab: Live video, photo link, alarm records, alarm count, pass count, channel, date & time display, indicator
• Photo Resolution: 640×480
• Camera: Embedded monocular (2MP camera)
• Storage of Records: >100,000
• Detection Mode: Automatic / Infrared (default)
• Maximum Detection Distance: 20–2000 mm
• Throughput: >40 persons/minute
• Sensitivity Level: 500 levels
• Detection Zones: 18 zones
• Power Supply: AC 100V–240V (DC 12V/3A)
• Input Voltage: DC 12V
• Operating Current: 1.5A
• Operating Power: 18W
• Alarm: 16 types of alarm tones (adjustable); 0–100 volume levels (max 80 dB)
• Visual Indicators: 2 sets of LEDs (red) on left and right door panels; Steady red = metal contraband detected
• Detected Contraband: Ferrous and non-ferrous metal weapons
• Self-Diagnosis: Yes
• Enclosure Material: Flame Retardant ABS Polymer, Medium Density Fiberboard, PVC
• Ingress Protection: N/A (waterproof and dustproof); N/A (vandal resistant)
• Operating Temperature: -40°C to 55°C
• Storage Temperature: -25°C to 60°C
• Operating Humidity: <95% RH (non-condensing)
• Operating Frequency: 5.7 KHz – 9.6 KHz
• Dimensions (L×W×H): 2226 × 845 × 580 mm
• Lane Size: 2000 × 710 × 498 mm
• Packed Dimensions: 2285 × 347 × 660 mm
• Net Weight: 46 kg | Gross Weight: 52 kg
• Certifications: CE, FCC, ISO9001
• Accessories: Remote Control
• Application Environment: Indoor

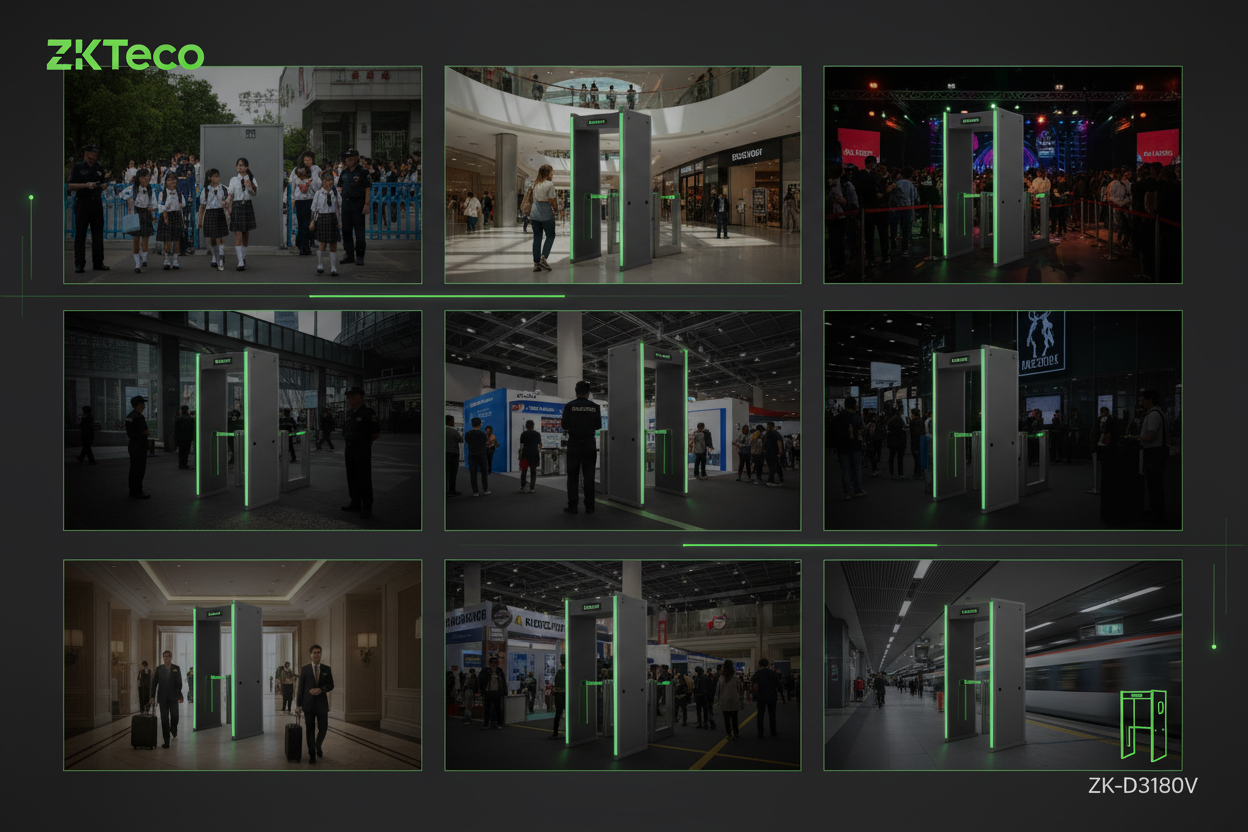

Applications

Schools · Shopping Malls · Entertainment Venues · Hotels · Exhibition Centers · Train Stations · Corporate Offices · Airports · High-Security Checkpoints
