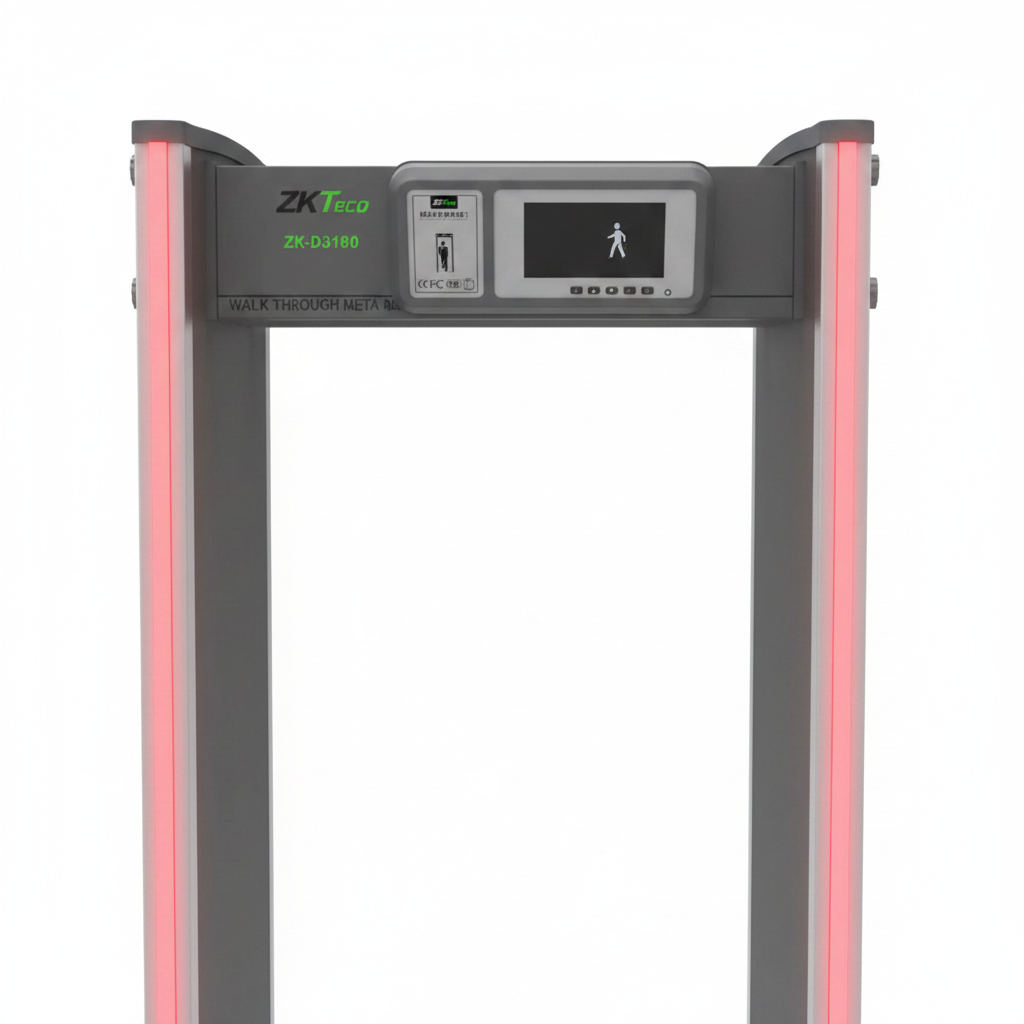

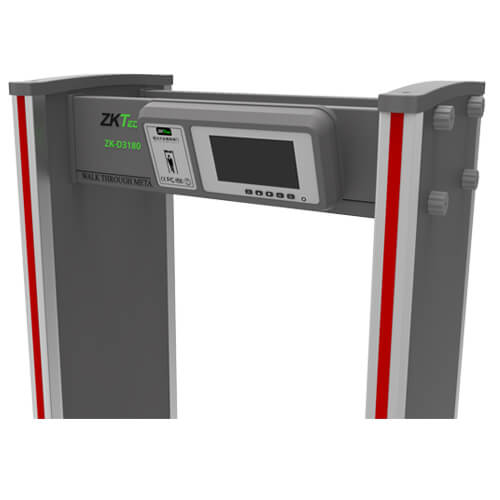

ZKTeco ZK-D3180 Walk Through Metal Detector | 33 Zones, 7" Display

ZKTeco ZK-D3180 — 33-Zone Walk-Through Metal Detector with 7″ Display & POE Support

When security cannot afford to be approximate, the ZKTeco ZK-D3180 delivers. As ZKTeco’s top-tier walk-through metal detector, the ZK-D3180 brings unmatched detection granularity with up to 33 configurable detection zones and 500 sensitivity levels — enabling security personnel to pinpoint exactly where on the body a concealed metal object is located. Whether you’re managing a high-footfall school entrance, a government office, a shopping mall, or an entertainment venue, the ZK-D3180 gives you the precision and intelligence to screen confidently at scale.

Its large 7″ TFT Color Screen makes setup and monitoring intuitive, while ZKBio SIS and ZK Metal Detector App/Software compatibility brings real-time intelligence and data logs directly to your team’s devices. With POE (optional) support, relay output, network interface, and remote control, this is a detector built for integrated, enterprise-grade security ecosystems.

Key Features

• 33 Detection Zones (1 / 6 / 12 / 18 / 33 Mode Adjustable) — ZKTeco’s highest zone count WTMD, enabling precise body-location detection of concealed ferrous and non-ferrous metal weapons.
• 500 Adjustable Sensitivity Levels — Fine-tune detection from coin-sized steel-nickel alloy objects (Ø22.25×1.85 mm) to large metallic weapons with surgical precision.
• 7″ TFT Color Screen — Large, vivid display for effortless configuration, alarm statistics, and real-time people count monitoring — a significant step up from the standard 3.5″ displays.
• Inbound & Outbound Sensitivity Settings — Set different sensitivity thresholds for people entering and leaving the secured area independently.
• Separate People Count (In & Out) — Automatically tracks the number of people entering and leaving separately for accurate occupancy and shift reporting.
• ZK Metal Detector App/Software & ZKBio SIS Compatible — Real-time monitoring, alarm data logs, and centralized management across multiple checkpoints via Android OS and Windows OS.
• 16 Types of Alarm Tones — Fully adjustable with 0–100 volume levels (max 80 dB) for flexible, environment-appropriate alerts.
• Synchronous Sound & LED Alarm — Simultaneous audio and visual (red LED on both door panels) alerts for instant, unmistakable threat notification.
• Automatic & Infrared Detection Modes — Dual IR groups trigger detection only when a person walks through, eliminating false activations from environmental movement.
• POE Support (Optional) — Power over Ethernet capability reduces cabling complexity for cleaner, more flexible installation.
• Relay Output & Network Interface — Integrate with access control systems, turnstiles, and enterprise security platforms for a fully automated security checkpoint.
• Remote Control — Adjust settings and manage the unit remotely without physical access to the device.
• Password Protection — Secure device settings from unauthorized tampering or configuration changes.
• Self-Diagnosis Program — Continuous health monitoring ensures consistent, reliable performance.
• Alarm & People Counter — Tracks footfall and alarm events automatically for accurate security reporting.
• Waterproof Bottom — Protective base design for enhanced durability in high-use environments.
• Fireproof Material — Flame Retardant ABS Polymer enclosure meets international fire safety standards.
• Harmless to Human Body — Safe for continuous use.
• Excellent Anti-Interference — Multiple units can operate side by side without cross-interference.
• CE, FCC & ISO9001 Certified — Internationally compliant for global deployment.

Technical Specifications

• Display: 7″ TFT Color Screen
• Physical Keypad: 5 keys
• Detection Zones: 1 / 6 / 12 / 18 / 33 (adjustable)
• Sensitivity Levels: 500
• Channel: 100
• Smallest Metal Objects Detected: Ø22.25 × 1.85 mm (Steel-Nickel Alloy)
• Maximum Detection Distance: Vertical 20–2000 mm
• Detection Sound Alert: 16 alarm tones; 0–100 volume levels (max 80 dB)
• Detection Visual Indicator: 2 sets of red LEDs on left & right door panels (Steady red = metal detected)
• Throughput: >40 persons/minute
• Detection Mode: Automatic / Infrared (default)
• Number of IR Groups: 2
• Detected Contraband: Ferrous and non-ferrous metal weapons
• Enclosure Material: Flame Retardant ABS Polymer, Medium Density Fiberboard, PVC
• Power Supply: AC 100V–240V (DC 12V/3A)
• Input Voltage: DC 12V; POE (optional)
• Operating Current: 1.2A
• Operating Power: 14W
• Operating Frequency: 5.7 KHz – 9.6 KHz
• Operating Temperature: -20°C to 55°C
• Storage Temperature: -25°C to 60°C
• Operating Humidity: <95% RH (non-condensing)
• Ingress Protection: N/A (waterproof and dustproof base)
• Application Environment: Indoor
• Dimensions (L×W×H): 2226 × 845 × 580 mm
• Lane Size: 2000 × 710 × 498 mm
• Packed Dimensions: 2280 × 347 × 660 mm
• Net Weight: 46 kg | Gross Weight: 52 kg
• Interface: Relay Output: YES | Network Interface: YES
• Remote Control: YES
• Self-Diagnosis: YES
• Supported Software: ZK Metal Detector App/Software (Android & Windows OS), ZKBio SIS
• Certifications: CE, FCC, ISO9001

Applications

Schools · Shopping Malls · Entertainment Venues · Government Offices · Airports · Courthouses · Prisons · Industrial Facilities · High-Security Checkpoints
