ZKTeco ZK-D2180L — Advanced 18-Zone Walk-Through Metal Detector with Network Integration

Imagine deploying a security checkpoint that doesn’t just detect threats — it documents them, reports them, and integrates seamlessly into your existing security infrastructure. The ZKTeco ZK-D2180L is built for exactly that level of operational sophistication. An advanced walk-through metal detector engineered for precision, scalability, and 24/7 reliability, the ZK-D2180L is trusted at corporate campuses, government buildings, airports, courthouses, prisons, and high-security event venues worldwide.

With 18 configurable detection zones, 500 adjustable sensitivity levels, network connectivity, and full compatibility with ZK Metal Detector software and ZKBio SIS, the ZK-D2180L doesn’t just screen people — it gives your security team real-time intelligence and centralized control across multiple entry points.

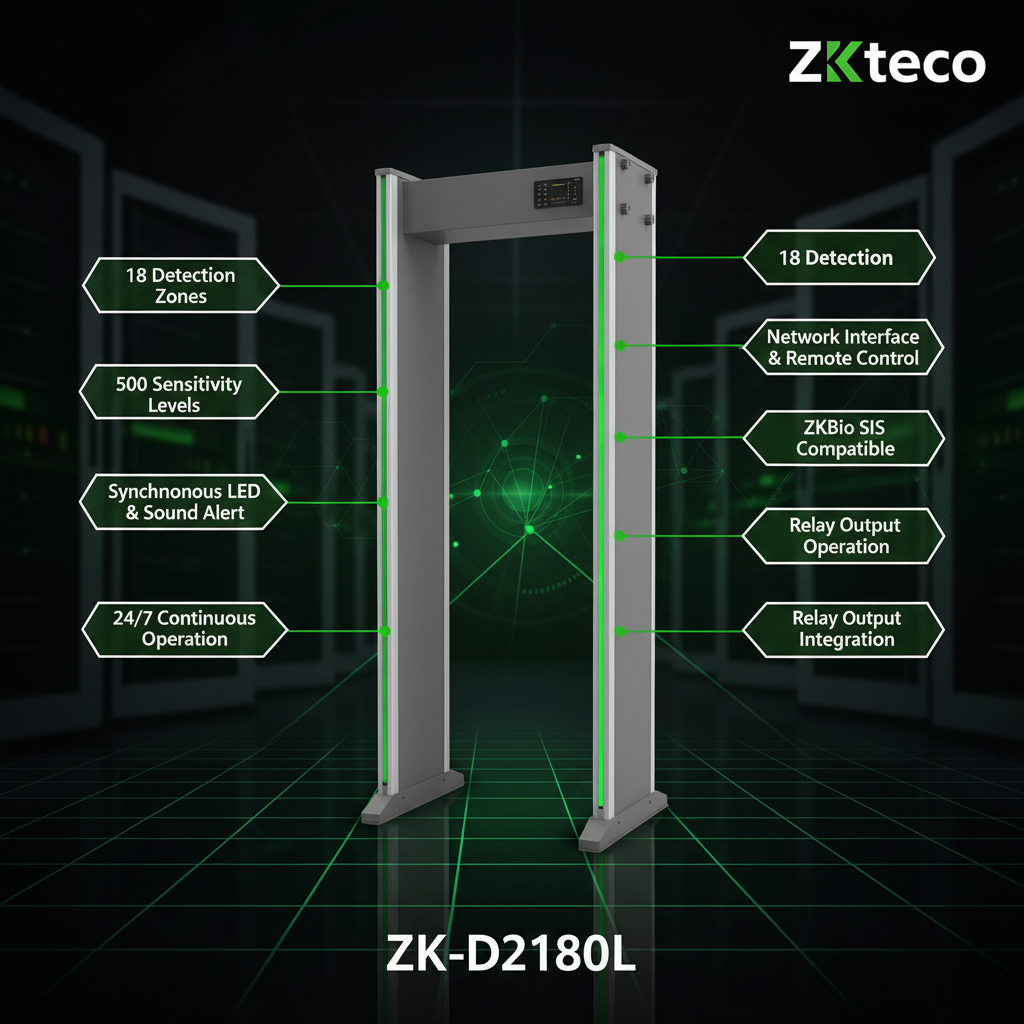

Key Features

• 18 Detection Zones (6 / 12 / 18 Adjustable) — Pinpoint the exact location of concealed metallic threats on the body, enabling targeted follow-up and dramatically improving throughput.
• 500 Adjustable Sensitivity Levels — Detect coin-sized metals to large ferrous and non-ferrous metal weapons with surgical precision. Fine-tune per environment and security requirement.
• Network Interface & Relay Output — Integrate with your security ecosystem for centralized monitoring, event logging, access control linkage, and turnstile integration.
• ZK Metal Detector App & ZKBio SIS Compatible — Real-time monitoring, alarms, and comprehensive data logs via Android OS, Windows OS, and enterprise security platforms.
• Remote Control Support — Configure and manage the unit remotely without physical access to the device.
• Synchronous LED & Sound Alert — Dual red LED strips on both door panels and 6-tone adjustable audio (up to 80 dB) deliver instant, unmistakable threat notification.
• Automatic & Infrared Detection Modes — Dual IR groups trigger detection only when a person walks through, eliminating false activations from environmental interference.
• Self-Diagnosis Program — Proactive health monitoring ensures the system always operates at peak performance.
• Excellent Anti-Interference — Reliable in electromagnetically noisy environments; multiple units can operate side-by-side without cross-interference.
• Separate In/Out Person Counting — Track bidirectional footfall and alarm events independently for accurate shift reporting.
• >40 Persons per Minute Throughput — High-volume screening without compromising security accuracy.
• Harmless to Human Body — Safe for continuous use including for pregnant women and those with pacemakers (consult manufacturer guidelines).
• Flame Retardant ABS Polymer Enclosure — Fire-safe, durable construction built to international standards for public and commercial installations.
• 24/7 Continuous Operation — Engineered for non-stop deployment at a lean 18W operating power.
• CE, FCC & ISO9001 Certified — Internationally compliant for global deployments.

Technical Specifications

• Model: ZK-D2180L
• Physical Keypad: 4 keys
• Detection Zones: 6 / 12 / 18 (adjustable)
• Sensitivity Levels: 500
• Channel: 100
• Smallest Object Detected: Coin-sized metals
• Maximum Detection Distance: Vertical 20–2000 mm
• Throughput: >40 persons/minute
• Detection Sound Alert: 6 alarm tones; 0–6 volume levels (max 80 dB)

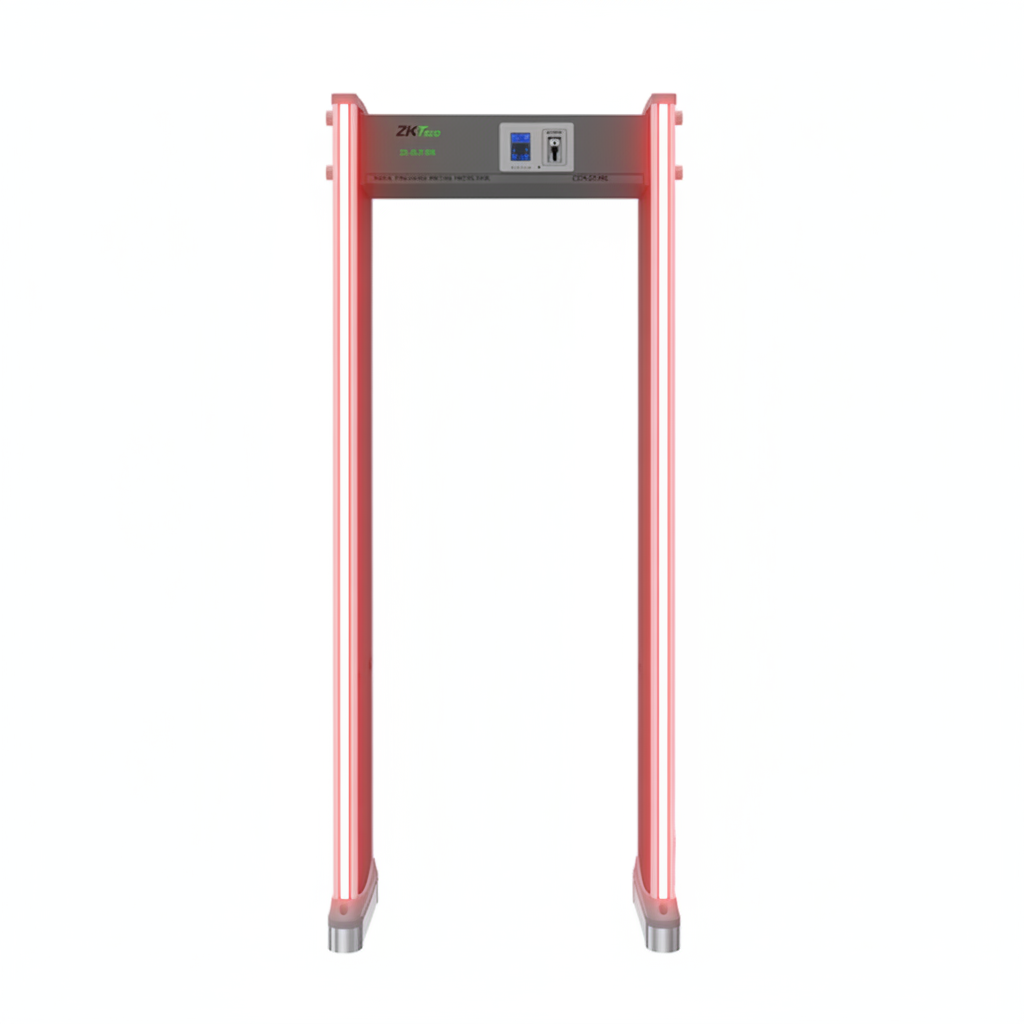

• Detection Visual Indicator: 2 sets of red LEDs, left & right door panels (Steady red = metal detected)
• Number of IR Groups: 2
• Detection Mode: Automatic / Infrared (default)
• Detected Contrabands: Ferrous and non-ferrous metal weapons
• Enclosure Material: Flame Retardant ABS Polymer, MDF, PVC
• Power Supply: AC 100V–240V (DC 12V/3A)
• Input Voltage: DC 12V
• Operating Current: 1.5A
• Operating Power: 18W
• Operating Frequency: 5.7 KHz – 9.6 KHz
• Operating Temperature: -20°C to 55°C
• Storage Temperature: -25°C to 60°C
• Operating Humidity: <95% RH (non-condensing)
• Application Environment: Indoor
• Dimensions (L×W×H): 2226 × 844 × 579 mm
• Lane Size: 2011 × 710 × 499 mm
• Packed Dimensions: 2266 × 660 × 270 mm
• Net Weight: 44 kg | Gross Weight: 50 kg
• Interface: Relay Output: YES | Network Interface: YES
• Remote Control: YES
• Supported Software: ZK Metal Detector (Android & Windows OS), ZKBio SIS
• Certifications: CE, FCC, ISO9001

Applications

Corporate Offices · Government Buildings · Airports & Transportation Facilities · Courthouses · Prisons & Correctional Facilities · Industrial Facilities · Commercial Buildings · Event Venues · Security Checkpoints · High-Security Facilities
