ZKTeco ZK-D2180 Walk Through Metal Detector | 18 Zones Standard

ZKTeco ZK-D2180 — 18-Zone Walk-Through Metal Detector with Network Connectivity

When your security infrastructure demands the highest level of precision, integration, and scalability, the ZKTeco ZK-D2180 is built to deliver. As ZKTeco’s premium 18-zone walk-through metal detector, the ZK-D2180 combines ultra-precise contraband detection with real-time software integration — making it the ideal choice for schools, shopping arcades, entertainment venues, government facilities, prisons, and any high-traffic environment where security cannot be compromised.

With 18 configurable detection zones and 500 adjustable sensitivity levels, the ZK-D2180 can pinpoint the exact location of a concealed metallic object on the body with surgical accuracy. Pair that with network connectivity, relay output, and compatibility with ZK Metal Detector App and ZKBio SIS for centralized, real-time monitoring across multiple entry points — and you have a security system that scales with your needs.

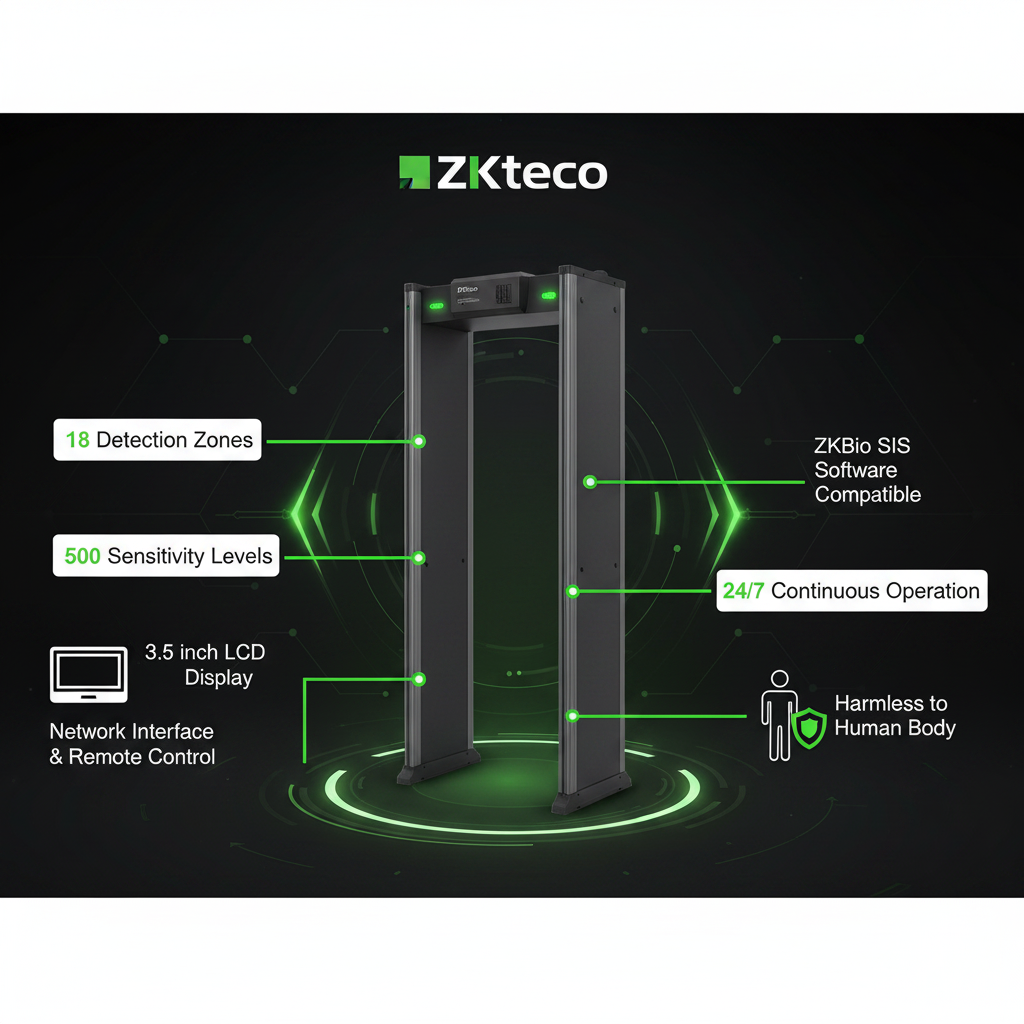

Key Features

• 18 Detection Zones (6 / 12 / 18 Adjustable) — Precisely locate concealed threats anywhere on the body, dramatically reducing unnecessary secondary screening and improving throughput.
• 500 Adjustable Sensitivity Levels — Detect coin-sized metals to large weapons with pinpoint accuracy. Fine-tune for your environment.
• 3.5″ TFT Color Screen — Vibrant, intuitive color display for easy configuration, real-time monitoring, and alarm/people count statistics.
• Network Interface & Relay Output — Connect to your security infrastructure for centralized monitoring, event logging, and access control integration.
• ZK Metal Detector App & ZKBio SIS Compatible — Real-time monitoring and comprehensive data logs on Android, Windows OS, and enterprise security platforms.
• Remote Control Support — Adjust settings and manage the unit without physical access to the device.
• Separate In/Out Person Counting — Track bidirectional footfall and alarm statistics independently for accurate reporting.
• Synchronous LED & Audio Alerts — Dual red LED strips on both door panels and 6-tone adjustable audio (up to 80 dB) for instant, unmistakable threat notification.
• Infrared Detection Mode (Default) — Smart dual IR groups trigger detection only when a person walks through, eliminating false activations.
• Self-Diagnosis Program — Proactive system health monitoring ensures peak performance at all times.
• Excellent Anti-Interference — Reliable operation in electromagnetically noisy environments; multiple units can be deployed side-by-side.
• Harmless to Human Body — Safe for continuous use; harmless to pregnant women, pacemaker users, and magnetic media.
• Fireproof & Waterproof-Bottom Construction — Flame Retardant ABS Polymer enclosure meets international safety standards for public installations.
• 24/7 Continuous Operation — Built for non-stop deployment at only 18W operating power.
• CE, FCC & ISO9001 Certified — Internationally compliant for use across global markets.

Technical Specifications

• Display: 3.5″ TFT Color Screen
• Physical Keypad: 4 keys
• Detection Zones: 6 / 12 / 18 (adjustable)
• Sensitivity Levels: 500
• Channel: 100
• Smallest Object Detected: Coin-sized metals
• Maximum Detection Distance: Vertical 20–2000 mm
• Throughput: >40 persons/minute
• Detection Sound Alert: 6 alarm tones; 0–6 volume levels (max 80 dB)
• Detection Visual Indicator: 2 sets of red LEDs on left & right door panels
• Number of IR Groups: 2
• Detection Mode: Automatic / Infrared (default)
• Detected Contrabands: Ferrous and non-ferrous metal weapons
• Enclosure: Flame Retardant ABS Polymer, MDF, PVC
• Power Supply: AC 100V–240V (DC 12V/3A)
• Input Voltage: DC 12V
• Operating Current: 1.5A
• Operating Power: 18W
• Operating Frequency: 5.7 KHz – 9.6 KHz
• Operating Temperature: -20°C to 55°C
• Storage Temperature: -25°C to 60°C
• Operating Humidity: <95% RH (non-condensing)
• Application: Indoor
• Dimensions (L×W×H): 2226 × 844 × 579 mm
• Lane Size: 2011 × 710 × 499 mm
• Packed Dimensions: 2266 × 660 × 270 mm
• Net Weight: 44 kg | Gross Weight: 50 kg
• Interface: Relay Output: YES | Network Interface: YES
• Remote Control: YES
• Supported Software: ZK Metal Detector (Android & Windows OS), ZKBio SIS
• Certifications: CE, FCC, ISO9001

Ideal For

Schools · Shopping Arcades · Entertainment Venues · Government Offices · Prisons · Exhibition Centers · Hotels · Corporate Campuses
