ZKTeco ZK-D1090 Walk Through Metal Detector

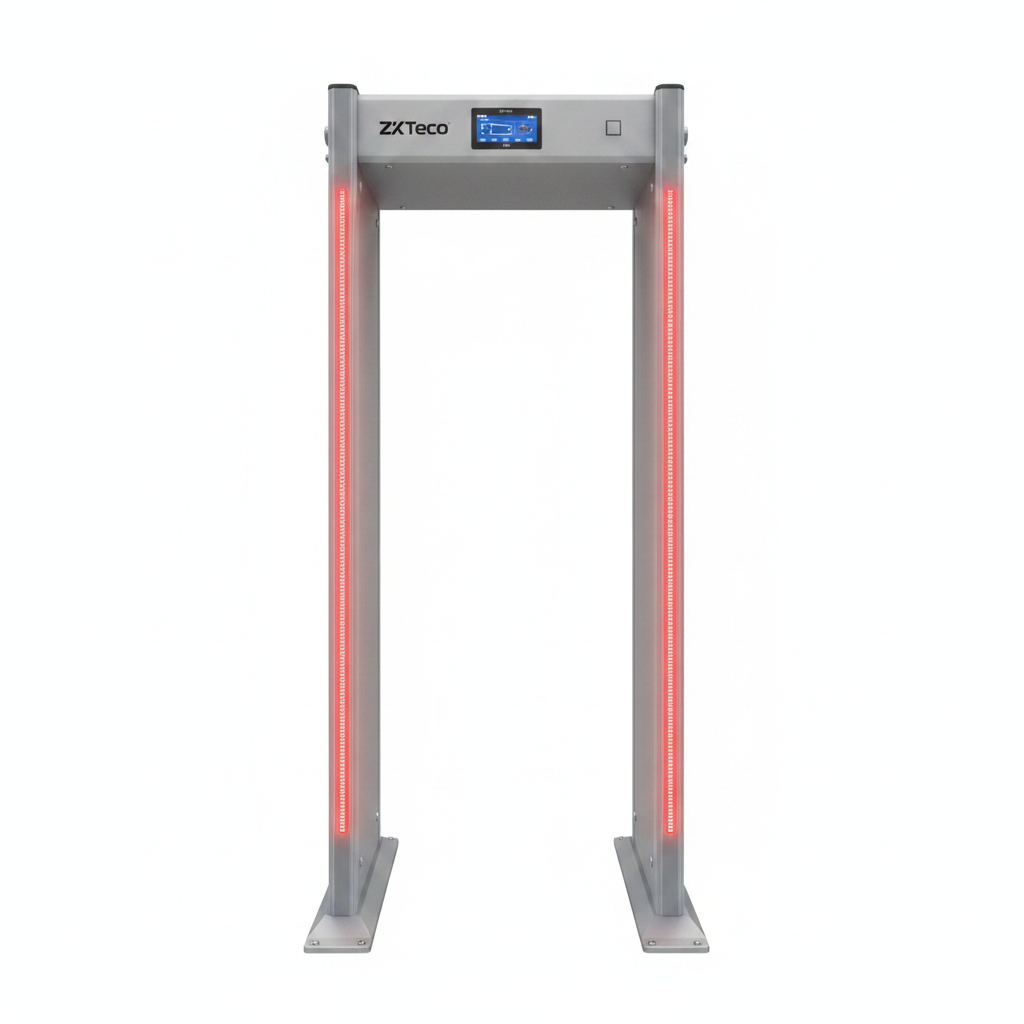

ZKTeco ZK-D1090 — Cost-Effective Walk-Through Metal Detector with 9 Detection Zones

Security shouldn't be a compromise, especially in high-traffic environments. The ZKTeco ZK-D1090 is engineered to deliver enterprise-grade threat detection at a cost-effective price point — making professional security accessible for schools, public venues, corporate entrances, exhibition centers, government offices, prisons, and electronic factories.

With 9 detection zones and 500 adjustable sensitivity levels, the ZK-D1090 pinpoints threats with precision while maintaining a throughput of over 40 persons per minute. It’s fast, accurate, and built for round-the-clock operation — so your security never takes a break.

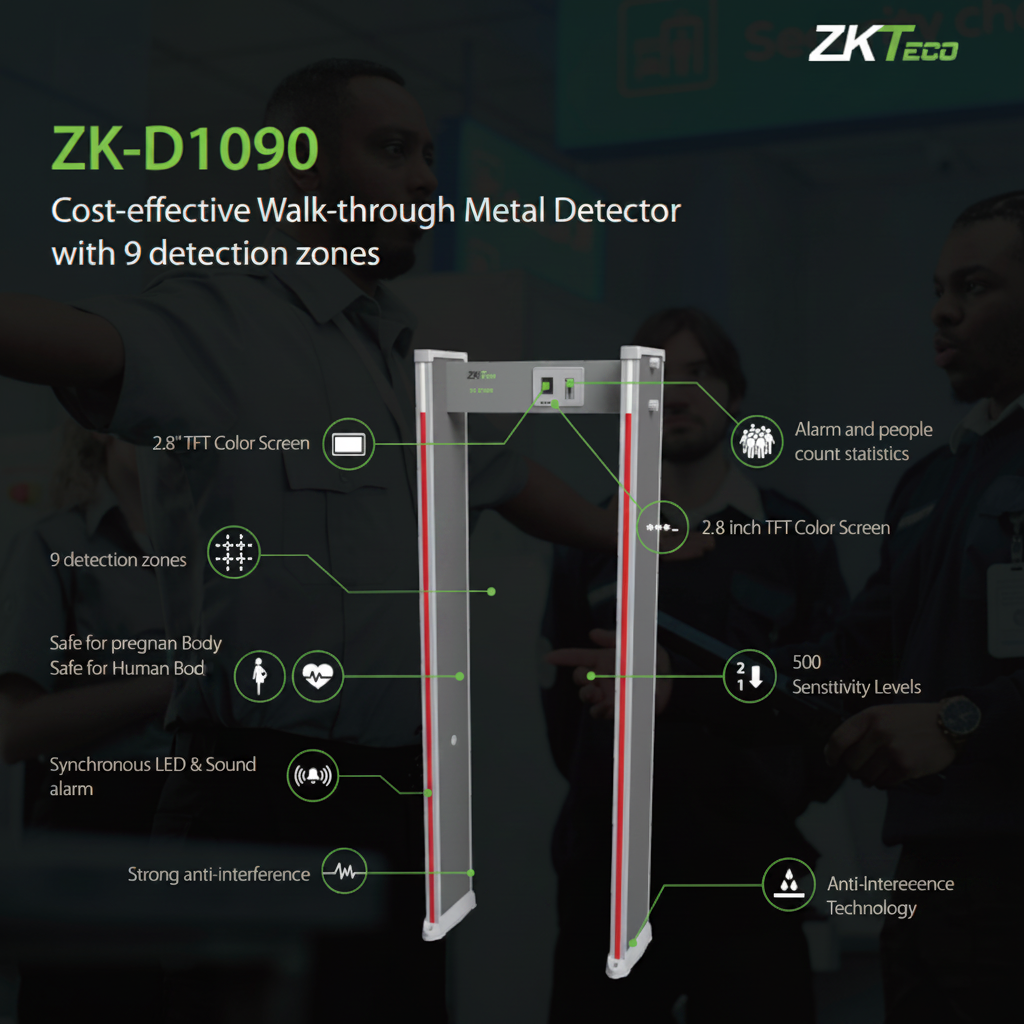

Key Features

• 9 Detection Zones (3 / 6 / 9 Adjustable) — Precisely locate the position of concealed metallic threats on the body, enabling targeted follow-up and faster clearance.
• 500 Adjustable Sensitivity Levels — Fine-tune detection to your specific environment, from coin-sized metals to larger concealed weapons.
• 2.8″ TFT Color Screen — Vibrant, intuitive color display makes it easy to configure, monitor, and read alarm/count statistics at a glance.
• Synchronous LED & Audio Alert — Dual red LED strips on both door panels and 6-tone adjustable audio (up to 80 dB) ensure instant, unmistakable threat notification.
• Alarm & People Count Statistics — Automatically tracks the number of people passing through and alarm events for easy reporting and shift handovers.
• Password Protection — Secure settings from unauthorized access or tampering.
• Infrared Detection Mode (Default) — Smart IR sensors trigger screening only when a person walks through, eliminating false activations.
• Self-Diagnosis Program — Proactive system health monitoring ensures the unit is always operating at peak performance.
• Strong Anti-Interference — Reliable performance in electromagnetically noisy environments; multiple units can operate side-by-side.
• Safe for Human Body — Safe for use by pregnant women and pacemaker users (consult manufacturer guidelines).
• Flame Retardant ABS Polymer with Waterproof Cover — Durable, fire-safe construction for demanding public and commercial environments.
• 24/7 Continuous Operation — Built for non-stop deployment with only 10W operating power.
• CE, FCC & ISO9001 Certified — Internationally compliant for use across global markets.

Technical Specifications

• Display: 2.8″ TFT Color Screen
• Physical Keypad: 4 keys
• Detection Zones: 3 / 6 / 9 (adjustable)
• Sensitivity Levels: 500
• Channel: 100
• Detected Contrabands: Ferrous and non-ferrous metal weapons
• Smallest Object Detected: Coin-sized metals
• Throughput: >40 persons/minute
• Detection Sound Alert: 6 alarm tones; 0–6 volume levels (max 80 dB)
• Detection Visual Indicator: 2 sets of red LEDs on left & right door panels
• Operating Frequency: 5.7 KHz – 9.6 KHz
• Power Supply: AC 100V–240V (DC 12V/3A)
• Operating Power: 10W
• Operating Temperature: -10°C to 45°C
• Storage Temperature: -20°C to 55°C
• Operating Humidity: <95% RH (non-condensing)
• Dimensions (L×W×H): 2221 × 859 × 405 mm
• Lane Size: 2007 × 710 × 315 mm
• Packed Dimensions: 2280 × 457 × 280 mm
• Net Weight: 27 kg | Gross Weight: 35 kg
• Enclosure: Flame Retardant ABS Polymer, MDF, PVC
• Certifications: CE, FCC, ISO9001
• Application: Indoor

Ideal For

Schools · Public Venues · Corporate Entrances · Exhibition Centers · Government Offices · Prisons · Finance Institutions · Hotels · Electronic Factories
