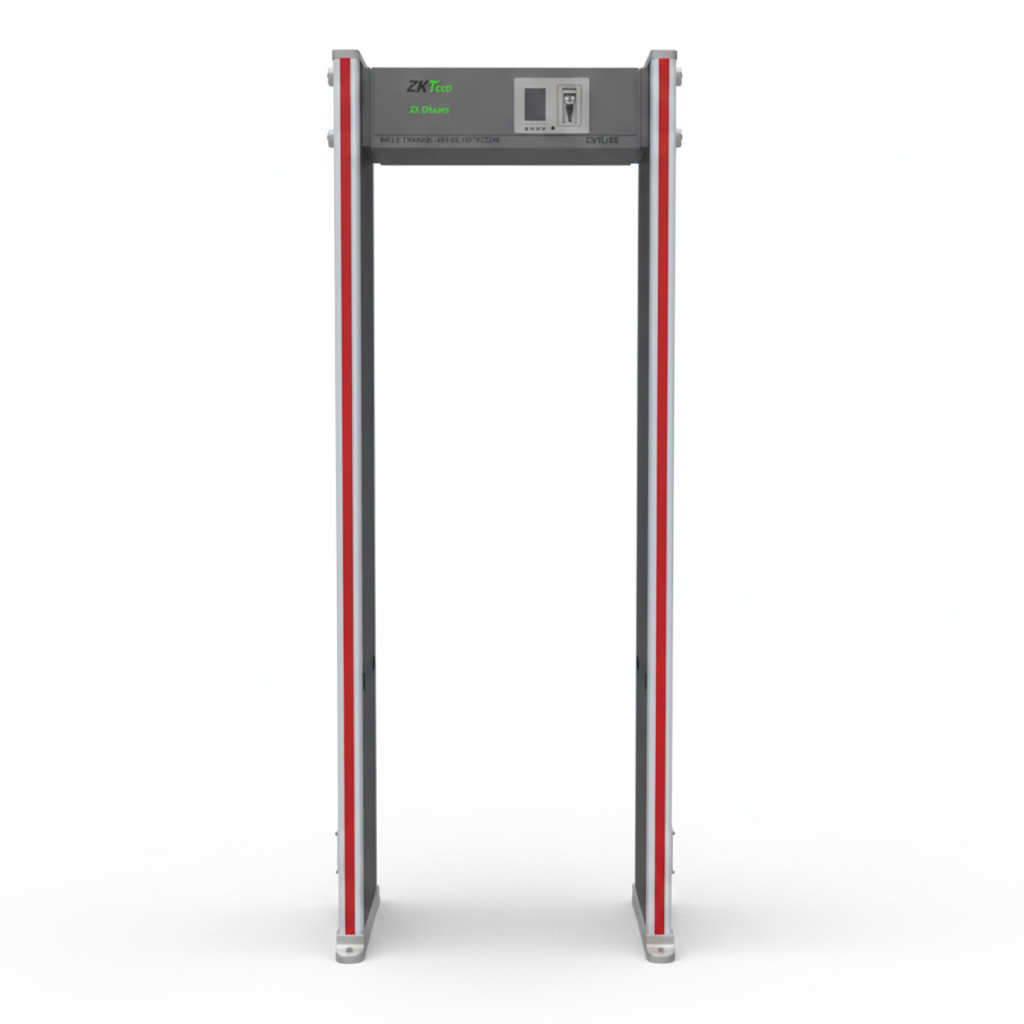

ZKTeco ZK-D1065 Walk Through Metal Detector

ZKTeco ZK-D1065 — Advanced Walk-Through Metal Detector

Step up your security game with the ZKTeco ZK-D1065 — a professional-grade walk-through metal detector designed for high-traffic venues that demand precision, reliability, and zero-compromise threat detection. Whether you're securing a school, shopping arcade, government office, or entertainment venue, the ZK-D1065 delivers enterprise-level performance in an easy-to-install, easy-to-operate package.

With up to 18 configurable detection zones and 500 sensitivity levels, this is one of the most precise walk-through detectors in its class — capable of pinpointing the exact location of a concealed metallic object on the body, dramatically reducing unnecessary secondary screening.

Key Features

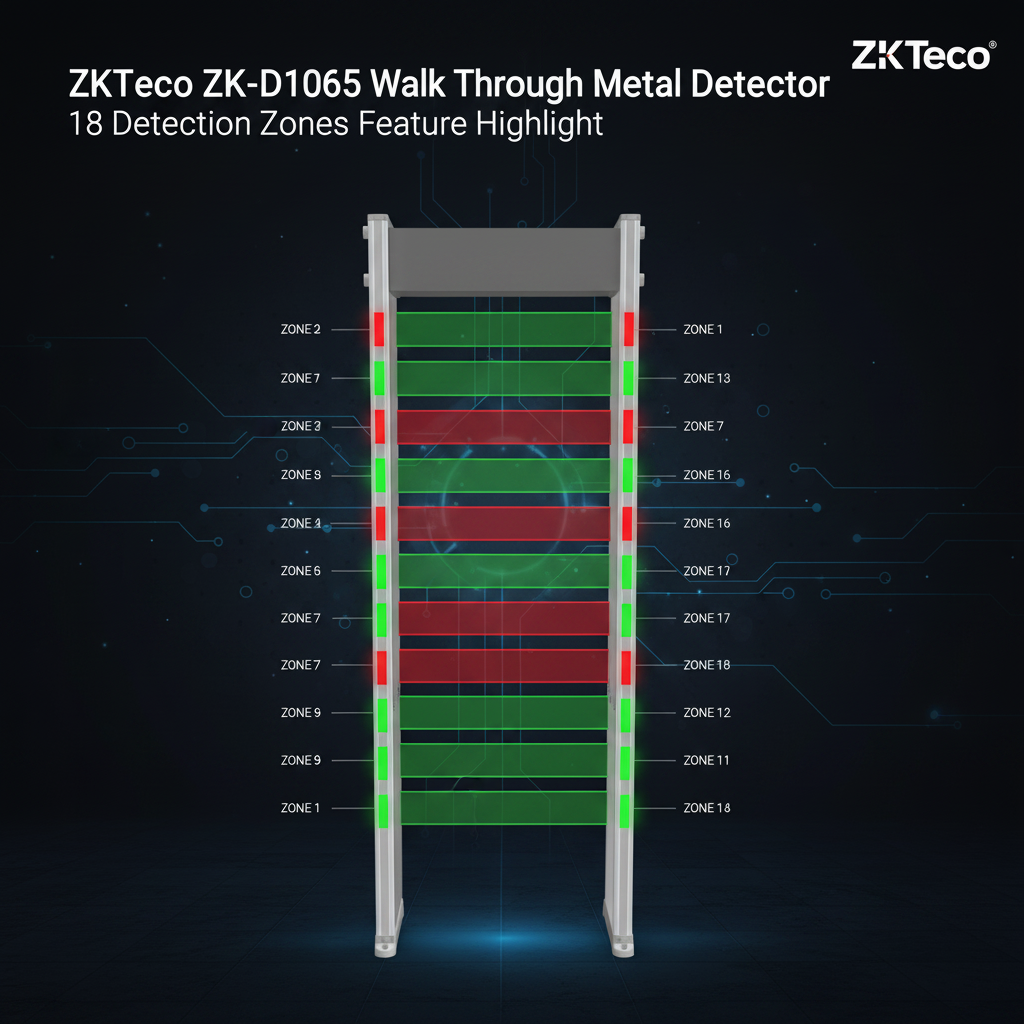

• 18 Detection Zones (6 / 12 / 18 Adjustable) — Precisely locate metallic threats on the body, from waist to shoulder, reducing false alarms and improving security efficiency.
• 500 Sensitivity Levels — Ultra-fine tuning for detecting everything from coin-sized metals to larger concealed weapons. Detect exactly what you need, nothing more.
• 100 Channels — Excellent anti-interference performance even in electromagnetically noisy environments; multiple units can operate side-by-side without cross-interference.
• Infrared Detection Mode (Default) — Smart IR sensors trigger the detection cycle only when a person walks through, eliminating unnecessary activations.
• Dual LED Visual Indicators — Red LEDs on both door panels light up at the exact zone where metal is detected, guiding security personnel instantly.
• 6 Alarm Tones & Adjustable Volume (0–6 levels, up to 80 dB) — Customize audio alerts to your environment, from quiet offices to busy public spaces.
• Separate In/Out Person Counting — Track bidirectional footfall independently for smarter security management and reporting.
• Automatic Sensitivity & Channel Setting — Self-calibrates to optimal performance, reducing manual setup time.
• Self-Diagnostic Program — Continuously monitors system health and flags faults proactively.
• 24/7 Continuous Operation — Built for round-the-clock deployment with 16W operating power.
• Flame Retardant ABS Polymer Construction — Meets safety standards for public and commercial installations.
• CE, FCC & ISO9001 Certified — Compliant with international safety and quality standards.

Technical Specifications

• Detection Zones: 6 / 12 / 18 (adjustable)
• Sensitivity Levels: 500
• Channels: 100
• Smallest Object Detected: Coin-sized metals
• Detection Range: Vertical 20–2000 mm
• Throughput: >40 persons/minute
• Operating Frequency: 5.7 KHz – 9.6 KHz
• Power Supply: AC 100V–240V (DC 12V/3A)
• Operating Power: 16W
• Operating Temperature: -20°C to 55°C
• Operating Humidity: <95% RH (non-condensing)
• Dimensions (L×W×H): 2213 × 831 × 471 mm
• Lane Size: 2000 × 710 × 399 mm
• Net Weight: 35 kg
• Enclosure: Flame Retardant ABS Polymer, MDF, PVC
• Certifications: CE, FCC, ISO9001
• Application: Indoor

Ideal For

Schools · Shopping Arcades · Hotels · Government Offices · Exhibition Centers · Entertainment Venues · Courthouses · Airports
