ZKTeco AMD1800 Pro Waterproof Walk Through Metal Detector | 18 Zones, IP65

ZKTeco AMD1800 Pro — IP65 Waterproof Walk-Through Metal Detector with 18 Detection Zones

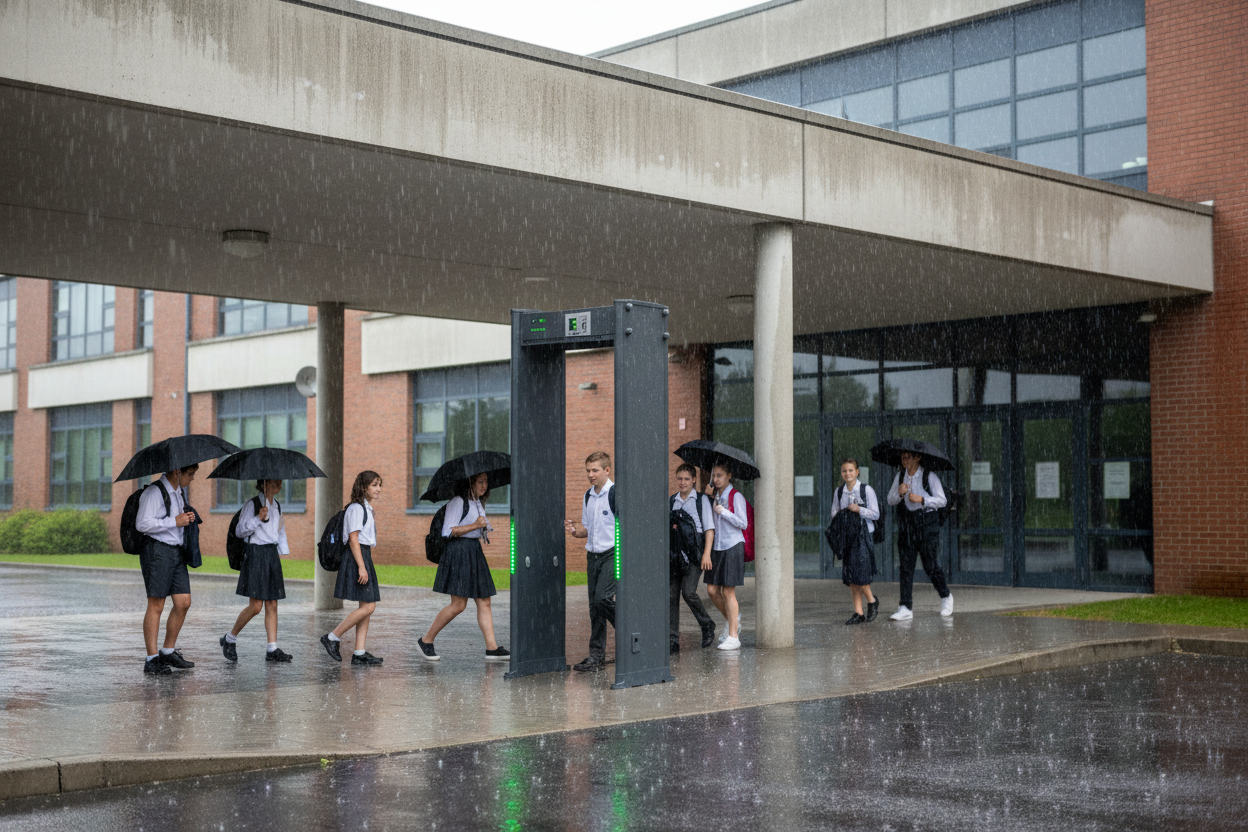

Most security checkpoints are indoors. But what about the ones that aren’t? School entrances, outdoor event venues, mall entrances, and leisure centers demand a metal detector that can handle the elements without compromising detection accuracy. The ZKTeco AMD1800 Pro was built for exactly these environments.

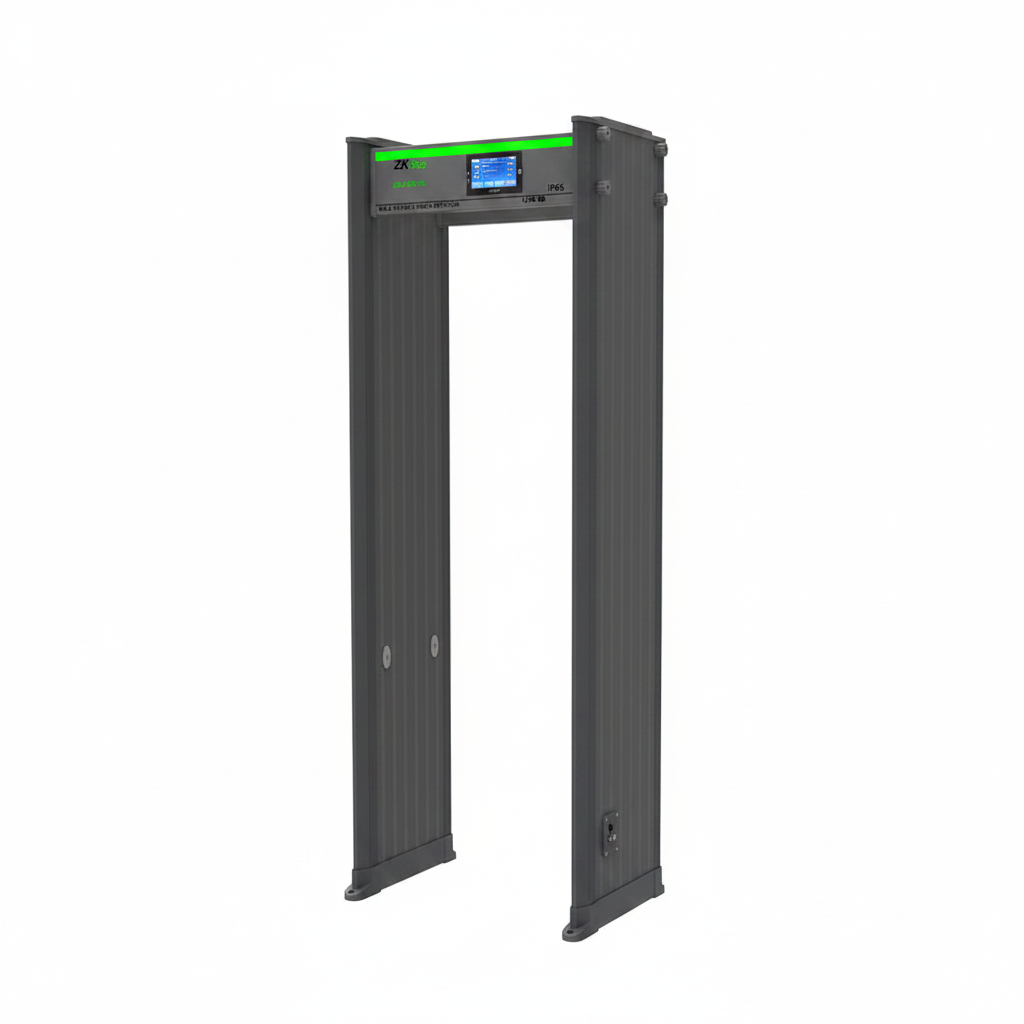

Rated IP65 — totally dust tight and protected against water projected from a nozzle — the AMD1800 Pro is ZKTeco’s premium outdoor-capable walk-through metal detector. Combine that with 18 detection zones, 256 sensitivity levels, TCP/IP communication, and compatibility with ZKTeco’s smart security gates, and you have a security solution that protects from the inside out, rain or shine.

Key Features

• IP65 Waterproof & Dustproof — Totally dust tight and protected against water from a nozzle. Built for indoor and outdoor deployment in all weather conditions.
• 18 Detection Zones — Identify the precise location of concealed metallic threats on the body for fast, targeted follow-up screening.
• 256 Adjustable Sensitivity Levels — Fine-tune detection to your specific security requirements — from small coin-sized metals to larger weapons.
• 3.5″ LCD Display — Clear, easy-to-read display for configuration, alarm statistics, and people count at a glance.
• Synchronous Sound & LED Alarm — Simultaneous audio and visual alerts for instant, unmistakable metal detection notification.
• TCP/IP Communication — Network connectivity for remote monitoring, real-time data, and centralized security management.
• Compatible with ZKTeco Smart Security Gates — Seamlessly integrate with ZKTeco turnstiles and access control for a fully automated security checkpoint.
• Remote Control via WTMD App — Adjust settings and manage the unit remotely without physical access to the device.
• WTMD App & WTMD Software Compatible — Real-time monitoring and data logs on Android and Windows OS platforms.
• Excellent Anti-Interference — Reliable performance in electromagnetically challenging environments; multiple units can be deployed side-by-side.
• Password Protection — Secure settings from unauthorized tampering or configuration changes.
• Self-Diagnosis Program — Proactive health monitoring ensures peak performance at all times.
• Alarm & People Counter — Automatically tracks footfall and alarm events for accurate shift reporting and security auditing.
• Harmless to Human Body — Safe for continuous use; harmless to pregnant women and pacemaker users (consult manufacturer guidelines).
• Simple Installation & Operation — Designed for straightforward deployment with minimal setup time.
• CE & FCC Certified — Internationally compliant for global deployment.

Technical Specifications

• Display: 3.5″ LCD
• Detection Zones: 18
• Sensitivity Levels: 256
• Protection Level: IP65
• Power Supply: AC 100V–240V
• Input Voltage: DC 12V
• Working Current: 1.5A (max)
• Running Power: 18W (max)
• Working Frequency: 5.7 KHz – 9.6 KHz
• Working Temperature: -20°C to 55°C
• Working Humidity: 95% (non-condensing)
• Dimensions (L×W×H): 2229 × 816 × 554 mm
• Lane Size: 2002 × 704 × 488 mm
• Packed Dimensions: 2285 × 260 × 615 mm
• Net Weight: 60 kg | Gross Weight: 73 kg
• Supported Software: WTMD APP, WTMD Software
• Certifications: CE, FCC

Applications

Schools · Shopping Malls · Leisure Centers · Exhibition Centers · Government Offices · Factories · Prisons · Financial Institutions · Hotels · Outdoor Events
