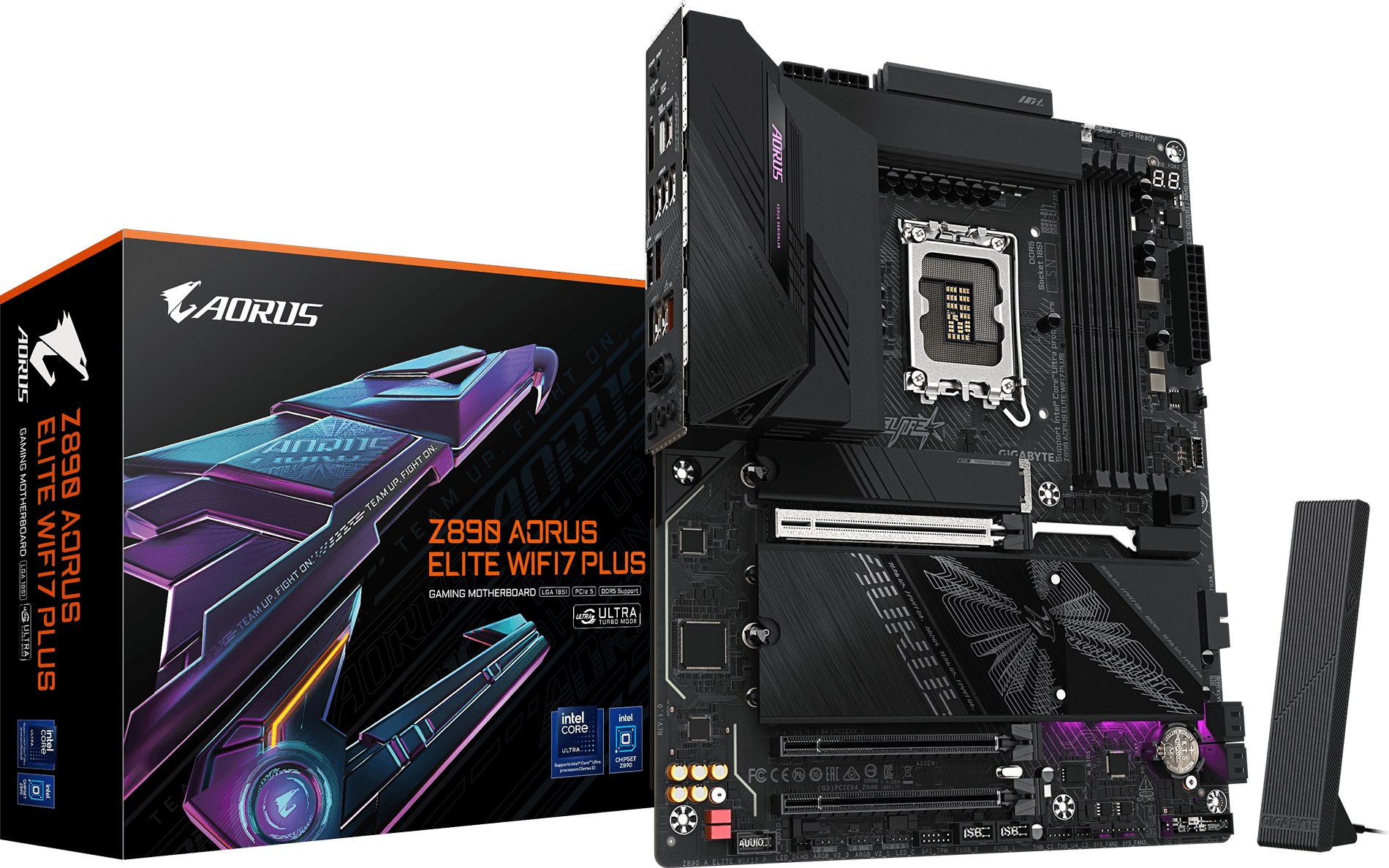

The GIGABYTE Z890 AORUS ELITE WIFI7 PLUS is an ATX motherboard built on the Intel Z890 Express chipset for the LGA1851 socket. It supports Intel Core Ultra 200S Series processors, pairing dual-channel DDR5 memory with PCIe 5.0 storage and graphics headroom, integrated Wi-Fi 7 and USB4 connectivity for a strong all-round high-performance Intel build.
Key Features
- Supports Intel Core Ultra 200S Series processors on the LGA1851 socket
- 4 x DDR5 DIMM slots, dual-channel, up to 256GB, overclockable to 9466+ MT/s
- 1 x PCIe 5.0 x16 primary slot plus 2 x PCIe 4.0 x4 slots
- 4 x M.2 slots (1 x PCIe 5.0, 1 x PCIe 4.0 from CPU; 2 x PCIe 4.0 from chipset) with RAID 0/1/5/10 support
- Integrated Intel Wi-Fi 7 (BE200NGW, 320MHz) and Bluetooth 5.4, plus Realtek 5GbE LAN
- USB4 Type-C with DisplayPort, plus multiple USB 3.2 Gen2/Gen1 ports
- Q-Flash, Q-Flash Plus, Smart Backup and Clear CMOS button for hassle-free building
- Internal headers for a GIGABYTE Thunderbolt 5 add-in card
Specifications
- Socket: LGA1851
- Chipset: Intel Z890 Express
- CPU Support: Intel Core Ultra Processors (Series 2)
- Memory: 4 x DDR5 DIMM, dual-channel, up to 256GB
- Expansion Slots: 1 x PCIe 5.0 x16; 2 x PCIe 4.0 x4
- Storage: 4 x M.2 (1x PCIe 5.0, 3x PCIe 4.0); 4 x SATA 6Gb/s
- LAN: Realtek 5GbE
- Wireless: Wi-Fi 7 (320MHz), Bluetooth 5.4
- USB: USB4 Type-C, USB 3.2 Gen2/Gen1, USB 2.0
- Audio: Realtek ALC1220, 7.1-channel
- Form Factor: ATX (30.5 x 24.4cm)
Specifications are from GIGABYTE and may change without notice. Actual feature support can vary by CPU.
