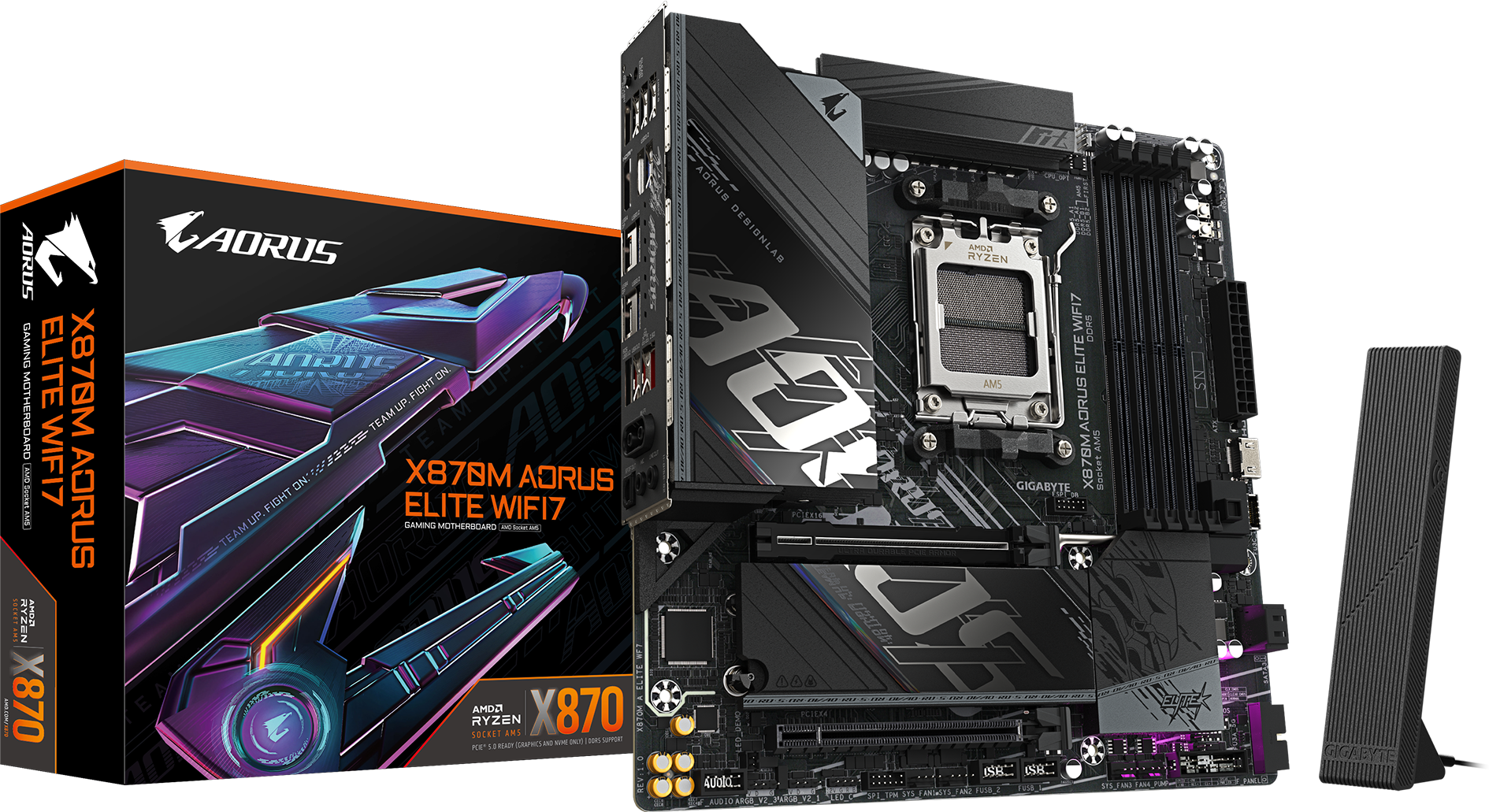

The GIGABYTE X870M AORUS ELITE WIFI7 is a Micro-ATX motherboard for AMD Ryzen 9000/8000/7000 series processors on Socket AM5, built on the AMD X870 chipset. It pairs PCIe 5.0 storage and graphics headroom with dual USB4 and Wi-Fi 7 for a compact, high-performance AMD build in a standard black finish.
Key Features
- Supports AMD Ryzen 9000/8000/7000 Series processors with AMD EXPO memory profiles
- 4 x DDR5 DIMM slots, dual-channel, up to 256GB, speeds from 4400 up to 8200+ MT/s (OC)
- PCIe 5.0 x16 primary slot plus PCIe 4.0 x4 chipset slot
- M.2 PCIe 5.0 (CPU) and PCIe 4.0 (chipset) slots, with NVMe RAID 0/1/5/10 support
- Dual USB4 Type-C ports on the rear panel
- Integrated Realtek Wi-Fi 7 (RTL8922AE) and Bluetooth 5.4, plus Realtek 2.5GbE LAN
- Q-Flash, Q-Flash Plus and Smart Backup for hassle-free building
Specifications
- Socket: AM5
- Chipset: AMD X870
- CPU Support: AMD Ryzen 9000/8000/7000 Series
- Memory: 4 x DDR5 DIMM, dual-channel, up to 256GB
- Expansion Slots: 1 x PCIe 5.0 x16 (Ryzen 9000/7000); 1 x PCIe 4.0 x4
- Storage: 2 x M.2 (1x PCIe 5.0, 1x PCIe 4.0); 2 x SATA 6Gb/s
- LAN: Realtek 2.5GbE
- Wireless: Wi-Fi 7 (160MHz), Bluetooth 5.4
- USB: 2 x USB4 Type-C, USB 3.2 Gen2/Gen1 Type-A, USB 2.0
- Audio: Realtek ALC1220, 7.1-channel
- Form Factor: Micro-ATX (24.4 x 24.4cm)
Pricing is provisional (supplier net + 18%, no public benchmark available at build time). Specifications are from GIGABYTE and may change without notice. Actual feature support can vary by CPU.
