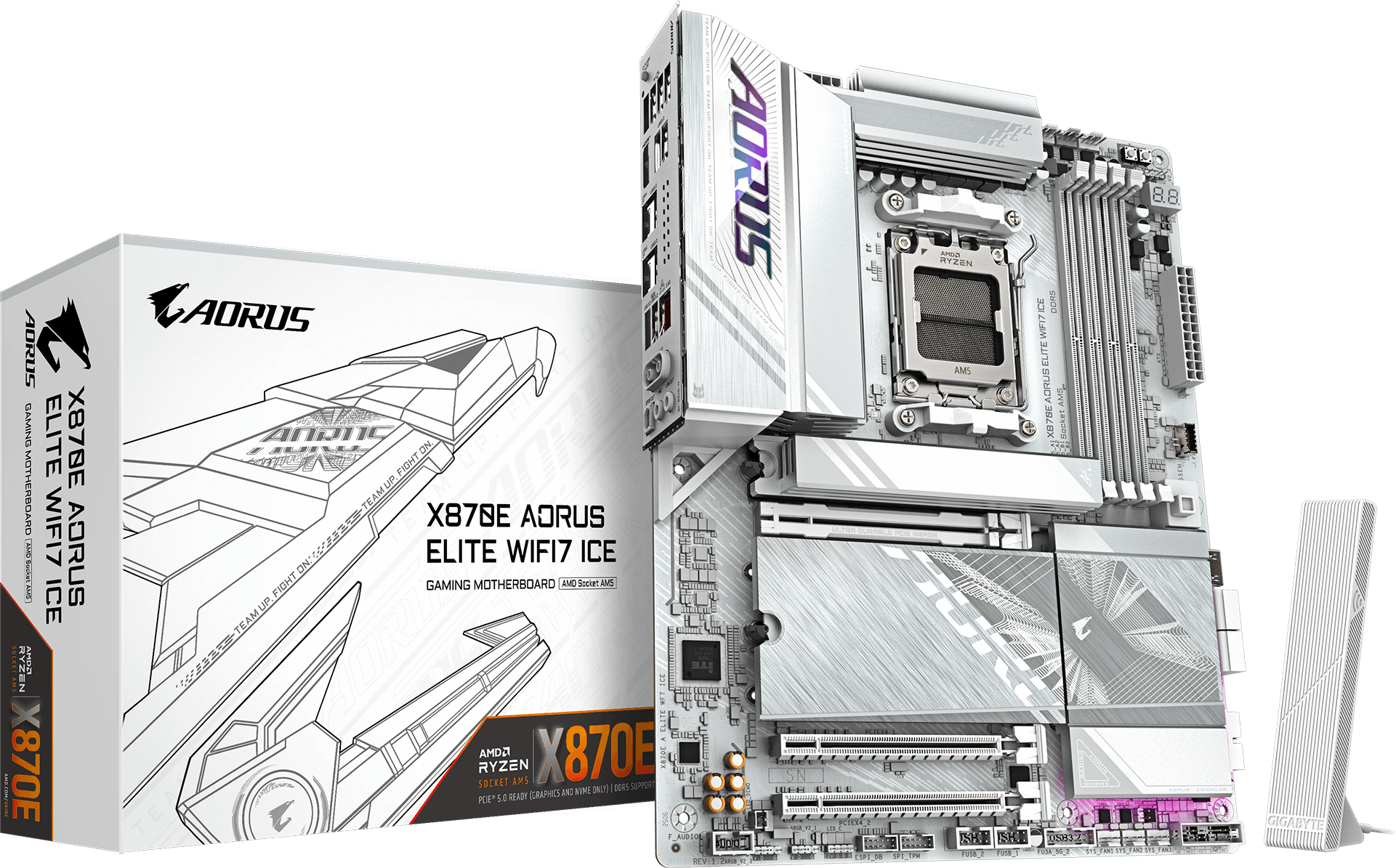

The GIGABYTE X870E AORUS ELITE WIFI7 ICE is an ATX motherboard for AMD Ryzen 9000/8000/7000 series processors on Socket AM5, built on the AMD X870E chipset in a white ICE-series finish. Dual USB4 ports, three PCIe 5.0 M.2 slots and integrated Wi-Fi 7 make it a strong all-rounder for a high-performance AMD build.
Key Features
- Supports AMD Ryzen 9000/8000/7000 Series processors with AMD EXPO memory profiles
- Digital Twin VRM design with dedicated heatsinks for overclocking headroom
- 4 x DDR5 DIMM slots, dual-channel, up to 256GB, speeds from DDR5-4400 up to 8200+ MT/s (OC)
- 3 x PCIe x16 slots (1 x PCIe 5.0, 1 x PCIe 4.0, 1 x PCIe 3.0) and 4 x M.2 slots (3x PCIe 5.0, 1x PCIe 4.0)
- Dual USB4 Type-C (40Gbps with DP-Alt) ports
- Integrated Wi-Fi 7 and Bluetooth, plus Realtek 2.5GbE LAN
- White ICE-series aesthetic with M.2 Thermal Guard backplates and VRM heatsinks
- Q-Flash Plus button for hassle-free BIOS recovery
Specifications
- Socket: AM5
- Chipset: AMD X870E
- CPU Support: AMD Ryzen 9000/8000/7000 Series
- Memory: 4 x DDR5 DIMM, dual-channel, up to 256GB
- Expansion Slots: 1 x PCIe 5.0 x16; 1 x PCIe 4.0 x16 (x4); 1 x PCIe 3.0 x16 (x4)
- Storage: 4 x M.2 (3x PCIe 5.0, 1x PCIe 4.0); 4 x SATA 6Gb/s
- LAN: Realtek 2.5GbE
- Wireless: Wi-Fi 7
- USB: 2 x USB4 Type-C, USB 3.2 Gen2/Gen1 Type-A, USB 2.0
- Audio: 7.1-channel HD audio, S/PDIF out
- Form Factor: ATX (30.5 x 24.4cm)
Pricing is provisional (supplier net + 18%, no public benchmark available at build time). Specifications are from GIGABYTE and may change without notice. Actual feature support can vary by CPU.
