The GIGABYTE X870E AERO X3D DARK WOOD is a flagship ATX motherboard for AMD Ryzen 9000/8000/7000 series processors on Socket AM5, built on the AMD X870E chipset. It pairs an AERO-series dark wood-grain panel design with dual USB4, Wi-Fi 7 and PCIe 5.0 storage/graphics headroom, purpose-built for high-end Ryzen X3D builds and content creators who want a distinctive look.
Key Features
- Supports AMD Ryzen 9000/8000/7000 Series processors, with X3D Turbo Mode and AI overclocking for X3D CPUs
- Distinctive AERO-series dark wood-grain panel design, an 8-layer PCB with 2x copper
- 4 x DDR5 DIMM slots, dual-channel, AMD EXPO support, up to 256GB, overclockable to 9000 MT/s
- 3 x PCIe x16 slots (2 x PCIe 5.0, 1 x PCIe 4.0) and 4 x M.2 slots (2 x PCIe 5.0, 2 x PCIe 4.0)
- Dual USB4 Type-C (40Gbps) ports plus a front-panel USB-C 3.2 Gen2x2 port
- Integrated Wi-Fi 7 (MediaTek MT7927) and Bluetooth 5.4, plus dual 5GbE LAN
- VRM Thermal Armor Advanced, Thermal Baseplate and GIGABYTE Smart Fan 6 cooling
- Q-Flash Plus, M.2 EZ Latch and PCIe EZ Latch Plus for hassle-free building
Specifications
- Socket: AM5
- Chipset: AMD X870E
- CPU Support: AMD Ryzen 9000/8000/7000 Series
- Memory: 4 x DDR5 DIMM, dual-channel, up to 256GB
- Expansion Slots: 2 x PCIe 5.0 x16 (1 at x16, 1 at x8); 1 x PCIe 4.0 x16 (at x4)
- Storage: 4 x M.2 (2x PCIe 5.0, 2x PCIe 4.0); 4 x SATA 6Gb/s
- LAN: 2 x 5GbE
- Wireless: Wi-Fi 7, Bluetooth 5.4
- USB: 2 x USB4 Type-C, USB 3.2 Gen2/Gen1, USB 2.0
- Audio: Realtek ALC1220, 8-channel
- Form Factor: ATX (30.5 x 24.4cm)

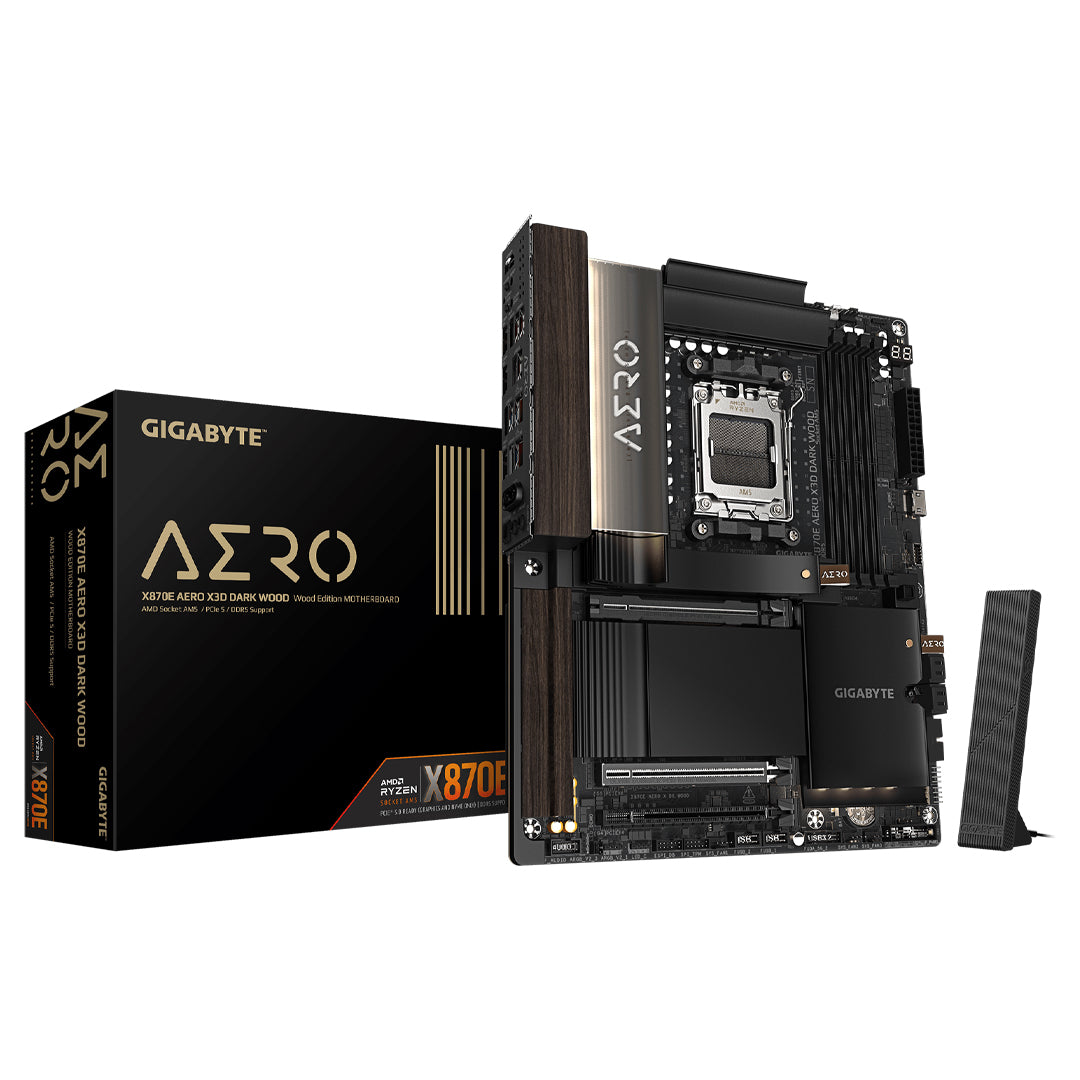

Image shown is the GIGABYTE X870E AERO X3D DARK WOOD; the dark wood-grain side panel is a signature design element of this AERO-series board. Specifications are from GIGABYTE and may change without notice. Actual feature support can vary by CPU.
