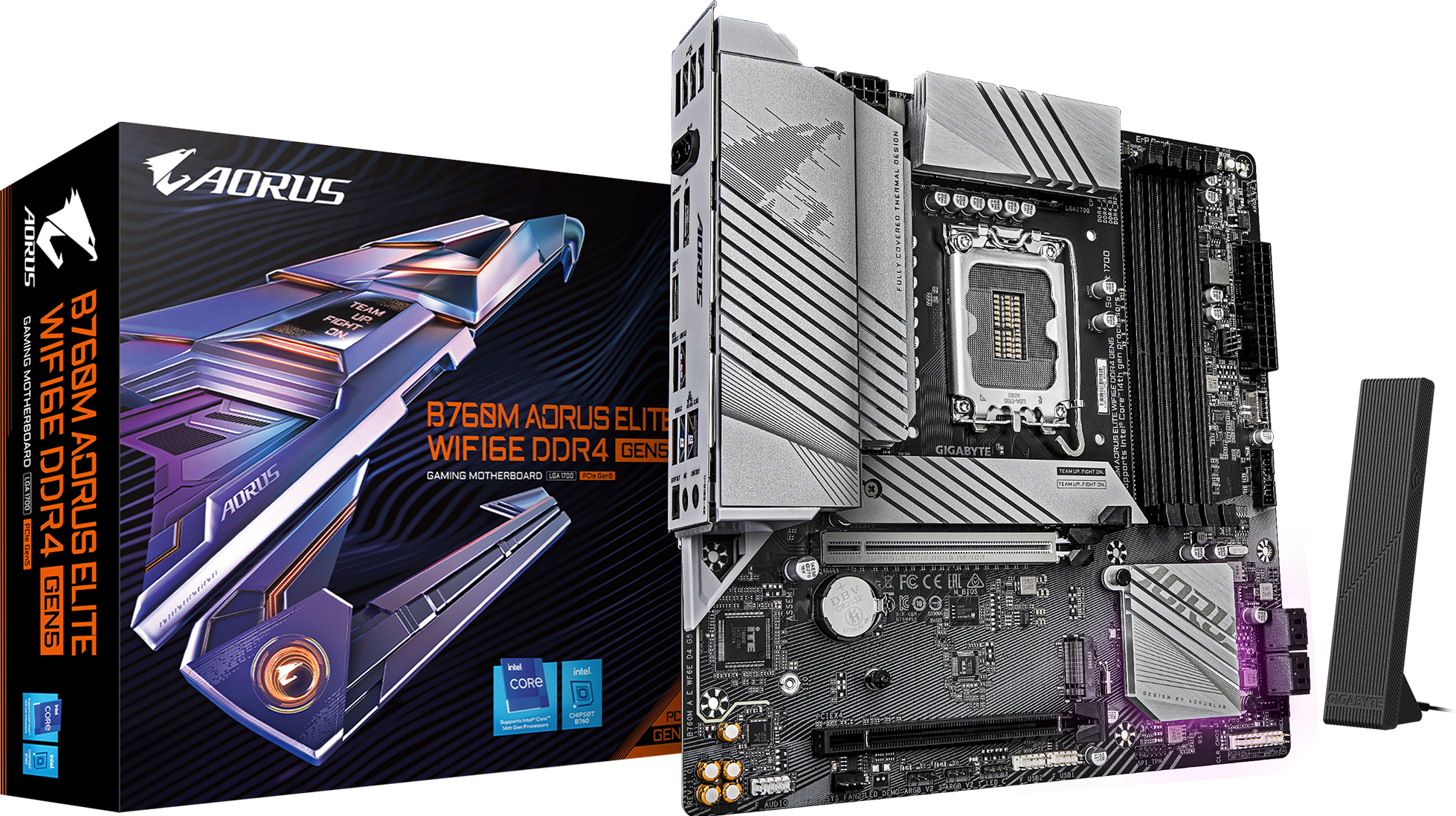

The GIGABYTE B760M AORUS ELITE WIFI6E DDR4 GEN5 is a Micro-ATX motherboard built on the Intel B760 Express chipset for the LGA1700 socket with DDR4 memory support. It supports Intel 12th, 13th and 14th Gen Core processors, pairing a PCIe 5.0 graphics slot with integrated Wi-Fi 6E for a well-rounded mainstream Intel build.
Key Features
- Supports Intel 12th/13th/14th Gen Core, Pentium Gold and Celeron processors on LGA1700
- 4 x DDR4 DIMM slots, dual-channel, up to 128GB, overclockable to 5333 MT/s
- 1 x PCIe 5.0 x16 primary slot (CPU) plus 1 x PCIe 4.0 x4 slot (chipset)
- 2 x M.2 PCIe 4.0 slots plus 4 x SATA 6Gb/s with RAID 0/1/5/10
- Integrated Intel Wi-Fi 6E (AX210, 160MHz) and Bluetooth 5.3, plus Realtek 2.5GbE LAN
- Internal headers for a GIGABYTE Thunderbolt add-in card
- Q-Flash, Q-Flash Plus and Smart Backup for hassle-free building
Specifications
- Socket: LGA1700
- Chipset: Intel B760 Express
- CPU Support: Intel 12th/13th/14th Gen Core, Pentium Gold, Celeron
- Memory: 4 x DDR4 DIMM, dual-channel, up to 128GB
- Expansion Slots: 1 x PCIe 5.0 x16; 1 x PCIe 4.0 x4
- Storage: 2 x M.2 (PCIe 4.0); 4 x SATA 6Gb/s
- LAN: Realtek 2.5GbE
- Wireless: Wi-Fi 6E (160MHz), Bluetooth 5.3
- USB: USB 3.2 Gen2x2 Type-C, USB 3.2 Gen2/Gen1, USB 2.0
- Audio: Realtek ALC1220, 7.1-channel
- Form Factor: Micro-ATX (24.4 x 24.4cm)
Specifications are from GIGABYTE and may change without notice. Actual feature support can vary by CPU.
