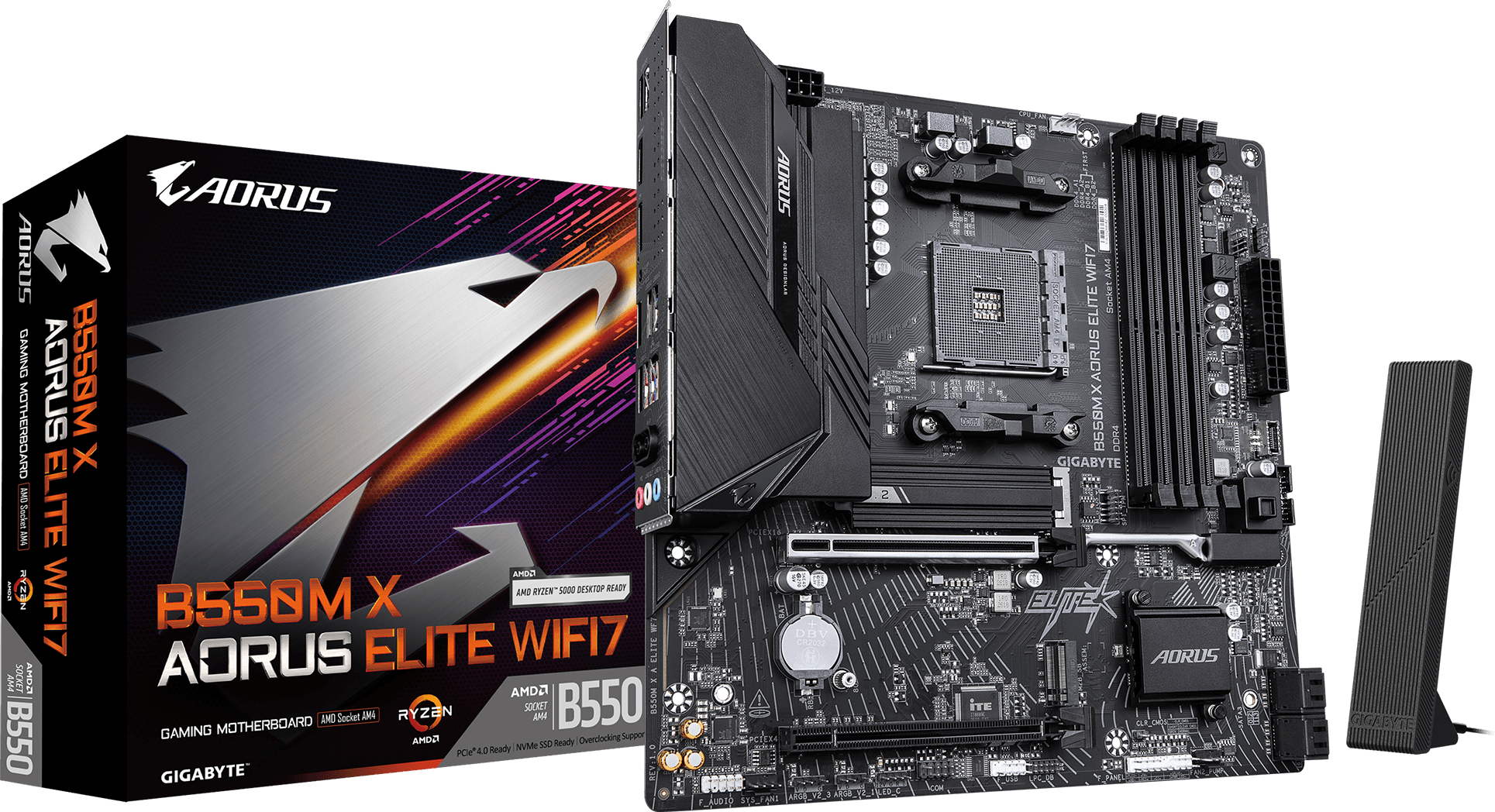

The GIGABYTE B550M X AORUS ELITE WIFI7 is a Micro-ATX motherboard built on the AMD B550 chipset for Socket AM4, with DDR4 memory support and built-in Wi-Fi 7 for compact AM4 builds that still want top-tier wireless connectivity. It supports AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, 3000 and 3000 G-Series processors.
Key Features
- Supports AMD Ryzen 5000/4000 G-Series/3000 Series processors on Socket AM4
- Built-in Wi-Fi 7 (Realtek RTL8922AE) with Bluetooth 5.4
- Realtek 2.5GbE LAN for fast wired networking
- Dual M.2 slots for NVMe and SATA storage flexibility
- Compact Micro-ATX form factor for space-conscious AM4 builds
Specifications
- Socket: AMD Socket AM4
- Chipset: AMD B550
- Form Factor: Micro-ATX
- Memory: 4x DDR4 DIMM, dual-channel, up to 128GB
- Storage: 2x M.2 (PCIe 4.0 x4/x2 + SATA), 4x SATA 6Gb/s, RAID 0/1/10
- Networking: Realtek 2.5GbE LAN, Wi-Fi 7, Bluetooth 5.4
- Rear Video: 1x HDMI 2.1, 1x DisplayPort 1.4 (CPU-dependent)
