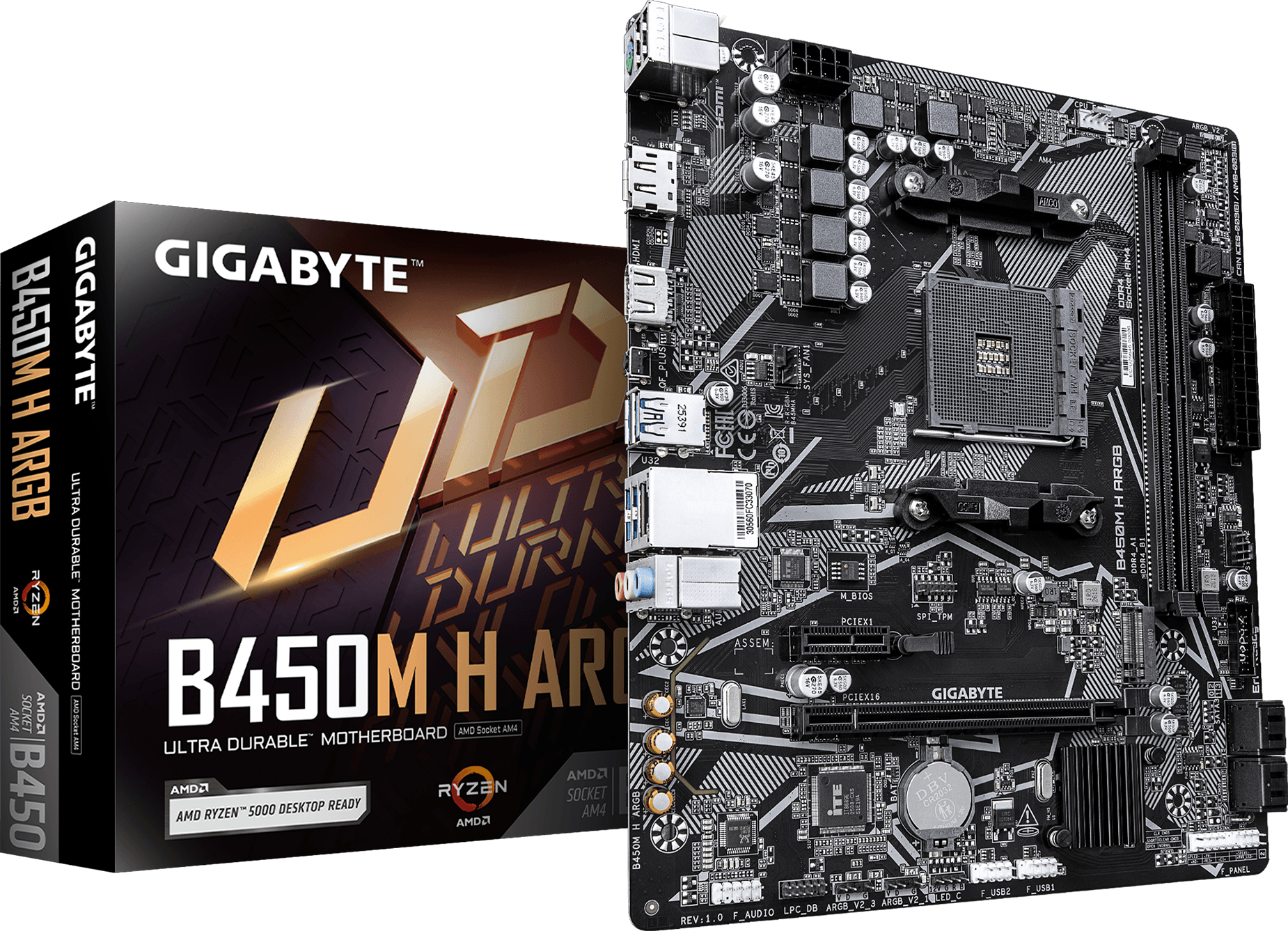

The GIGABYTE B450M H ARGB is a Micro-ATX motherboard built on the AMD B450 chipset for Socket AM4, with DDR4 memory support and onboard ARGB headers for easy RGB lighting integration. It supports AMD Ryzen 5000, 4000 and 3000 Series processors, including G-Series models.
Key Features
- Supports AMD Ryzen 5000/4000/3000 Series processors on Socket AM4
- RGB FUSION 2.0 support with 3x addressable RGB Gen2 headers and 1x standard RGB header
- 4x SATA 6Gb/s with RAID 0/1/10 support
- M.2 slot for additional NVMe/SATA storage
- Compact, budget-friendly Micro-ATX form factor for AM4 builds
Specifications
- Socket: AMD Socket AM4
- Chipset: AMD B450
- Form Factor: Micro-ATX
- Memory: 2x DDR4 DIMM, dual-channel, up to 64GB (DDR4-2667/2400/2133)
- Storage: 1x M.2 (SATA 2280 + PCIe 3.0 x4/x2), 4x SATA 6Gb/s, RAID 0/1/10
- Networking: Realtek GbE LAN
- Rear Video: 1x DisplayPort, 1x HDMI
- Lighting: RGB FUSION 2.0, 3x ARGB Gen2 headers, 1x RGB header
