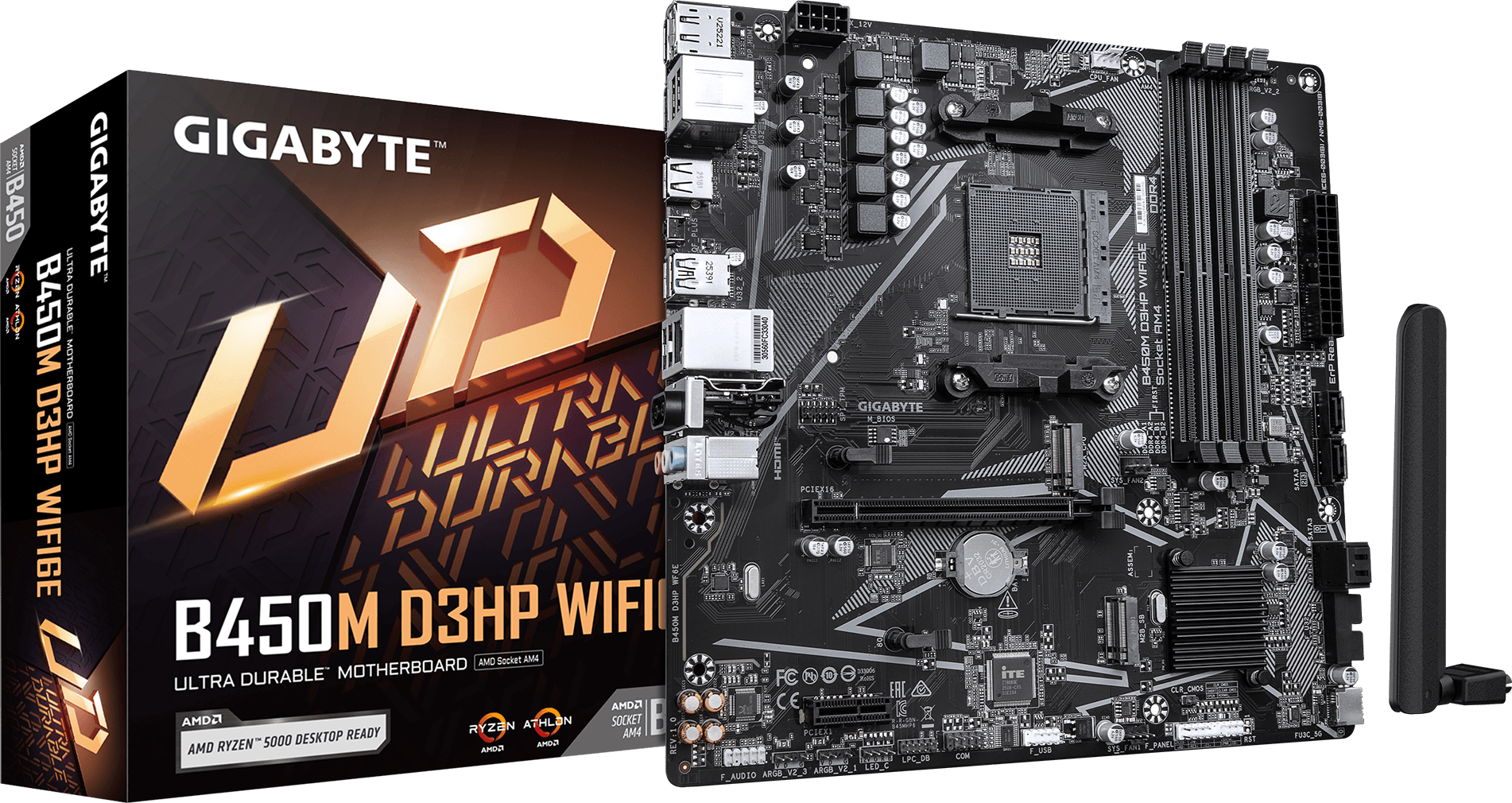

The GIGABYTE B450M D3HP WIFI6E is a Micro-ATX motherboard built on the AMD B450 chipset for Socket AM4, with DDR4 memory support and built-in Wi-Fi 6E. Part of Gigabyte's revived B450 lineup for AM4, it supports AMD Ryzen 5000, 4000 and 3000 Series processors.
Key Features
- Supports AMD Ryzen 5000/4000/3000 Series processors on Socket AM4
- Built-in Wi-Fi 6E (Realtek RTL8852CE) with Bluetooth for fast, low-latency wireless networking
- CPU-attached M.2 slot with PCIe 3.0 x4/x2 and SATA support
- 4 DDR4 DIMM slots for up to 128GB of memory
- Compact Micro-ATX form factor for budget-friendly AM4 builds
Specifications
- Socket: AMD Socket AM4
- Chipset: AMD B450
- Form Factor: Micro-ATX
- Memory: 4x DDR4 DIMM, dual-channel, up to 128GB (DDR4-2667)
- Storage: M2A_CPU (PCIe 3.0 x4/x2 + SATA) + M2B_SB (PCIe 2.0 x2), 4x SATA 6Gb/s, RAID 0/1/10
- Networking: Realtek GbE LAN, Wi-Fi 6E, Bluetooth
- Rear Video: 1x DisplayPort, 2x HDMI (CPU-dependent)
