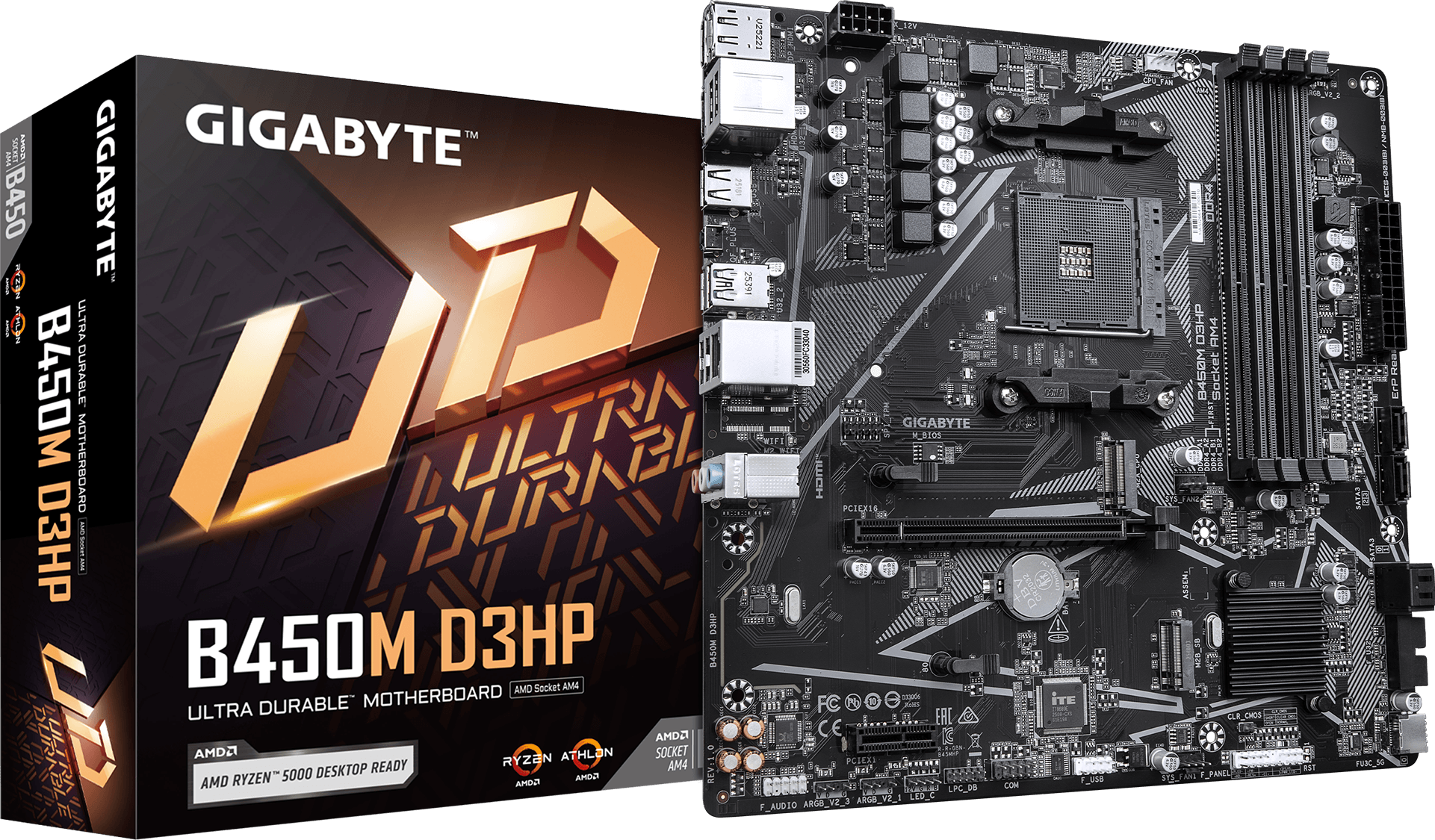

The GIGABYTE B450M D3HP is a Micro-ATX motherboard built on the AMD B450 chipset for Socket AM4, with DDR4 memory support. Part of Gigabyte's revived B450 lineup for AM4, it supports AMD Ryzen 5000, 4000 and 3000 Series processors, including G-Series models.
Key Features
- Supports AMD Ryzen 5000/4000/3000 Series processors on Socket AM4
- CPU-attached M.2 slot with PCIe 3.0 x4/x2 and SATA support, plus a second chipset M.2 slot
- 4 DDR4 DIMM slots for up to 128GB of memory
- 4x SATA 6Gb/s with RAID 0/1/10 support
- Compact, budget-friendly Micro-ATX form factor for AM4 builds
Specifications
- Socket: AMD Socket AM4
- Chipset: AMD B450
- Form Factor: Micro-ATX
- Memory: 4x DDR4 DIMM, dual-channel, up to 128GB (DDR4-2667)
- Storage: M2A_CPU (PCIe 3.0 x4/x2 + SATA) + M2B_SB (PCIe 2.0 x2), 4x SATA 6Gb/s, RAID 0/1/10
- Networking: Realtek GbE LAN
- Rear Video: 1x DisplayPort, 2x HDMI (CPU-dependent)
