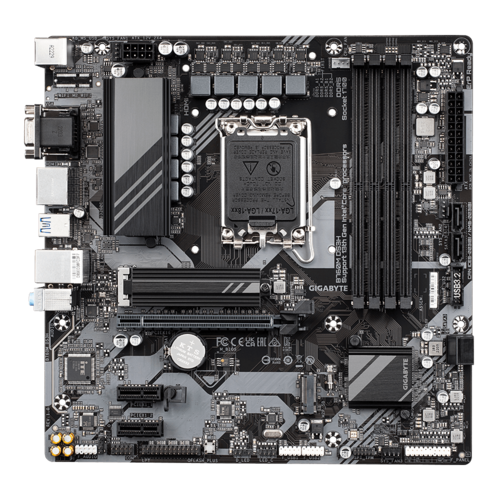

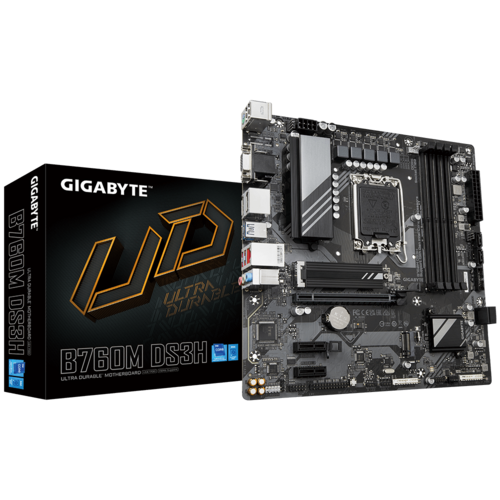

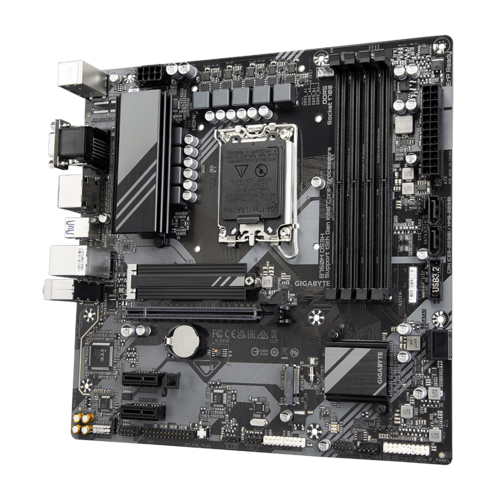

Gigabyte B760M DS3H Motherboard

Rs. 13,899.00
Rs. 13,899.00
Rs. 17,599.00
Write a Review
Earn 6949 Reward Points. Learn More...

Here is only a suggestion: Reward Points function (demo function). To use real Reward Points, you need a 3rd party Shopify App.

Your items may arrive sooner than the estimated delivery date. Ralph Lauren reserves the right to send packages via other shipping methods based on the shipping destination as long as orders will still arrive within the arrival times outlined on RalphLauren.com.

When you choose the Economy delivery option, packages are delivered Monday through Saturday 8 AM to 4:30 PM. Orders sent by Fast, 2-Business-Day or Next-Day shipping methods are delivered Monday through Friday from 8 AM to 4:30 PM.

We recommend choosing Fast or Next-Day delivery if you are shipping your package to a business address. You will be asked to provide a telephone number on the shipping page of checkout, which is important in the event the courier needs to arrange a delivery time with you.

You will also be asked to provide an email address, to which we will send confirmation that your order was placed.

Add to wishlist Added to wishlist
Terms & conditions

Order in the next
to get it by
Ask us any Question
Details

KEY FEATURES:

  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5：4*DIMMs XMP Memory Module Support
  • Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
  • M.2 Thermal Guard：To Ensure M.2 SSD Performance
  • EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
  • Fast Networks：2.5GbE LAN
  • Extended Connectivity：Rear USB-C® 10Gb/s, DP, HDMI
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

SPECIFICATIONS:

Brand Gigabyte
Model B760M DS3H
CPU
  1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset Intel® B760 Express Chipset
Memory
  1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
  2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz km
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.3.
  3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
  4. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version.
(Graphics specifications may vary depending on CPU support.)

Support for up to quad-display at the same time
Audio
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  4. Support for S/PDIF Out
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots CPU:
  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
  1. 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage Interface CPU:
  1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  2. 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB Chipset:
  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  3. 2 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
  1. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 3 x system fan headers
  5. 1 x addressable LED strip header
  6. 1 x RGB LED strip header
  7. 2 x M.2 Socket 3 connectors
  8. 4 x SATA 6Gb/s connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x USB 3.2 Gen 1 header
  12. 2 x USB 2.0/1.1 headers
  13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  14. 1 x serial port header
  15. 1 x parallel port header
  16. 1 x S/PDIF Out header
  17. 1 x Q-Flash Plus button
  18. 1 x reset jumper
  19. 1 x Clear CMOS jumper

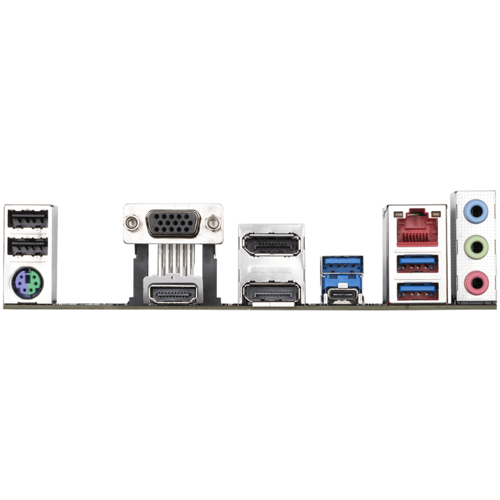

Back Panel Connectors
  1. 2 x USB 2.0/1.1 ports
  2. 1 x PS/2 keyboard/mouse port
  3. 1 x D-Sub port
  4. 1 x HDMI port
  5. 2 x DisplayPorts
  6. 3 x USB 3.2 Gen 1 ports
  7. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
  8. 1 x RJ-45 port
  9. 3 x audio jacks
I/O Controller iTE I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  2. Support for Q-Flash
  3. Support for Q-Flash Plus
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software
Operating System
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty 3 Years Manufacturer's Warranty
Country Of Origin China
Manufacturer Gigabyte Technology (India) Private Limited
B-Wing, 807 & 808, Naman MidTown
Elphinstone Road, Mumbai 400013
Email: sales@gigabyte.in
Tel: +91 0 22 40633222
Importer WPG C&C Computers And Peripheral(I) Pvt.Ltd
Shed No-26, 2nd Floor, Okhla Industrial Area, Phase III,
New Delhi-110020
Net Quantity 1
