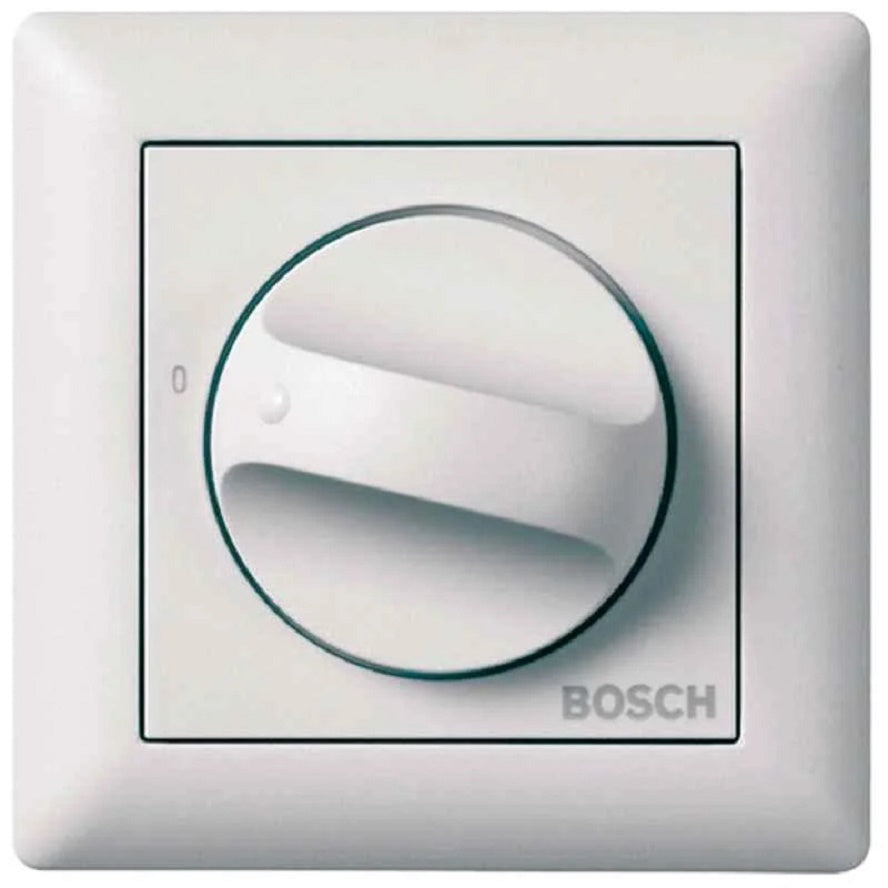

Product Description
Features
12 Watts
Available in power-save or failsafe versions
Built-in 24 VDC override relay
Continuous rotating system
Suitable for 3-wire and 4-wire systems
Bosch introduces a full range of volume controls and program selectors to provide a complete public address solution
Functions
Operation
Public address systems are often used for both announcements and background music distribution
Volume controls can be used to adjust the level locally
In addition to volume control,program selectors can also be installed to select five different programs locally
In the event of an (emergency) announcement,the built-in relay ensures that the message is broadcast at a preset level,independent of the local volume setting
The volume controls come in three versions according to power rating:12W, 36W,and 100W
The total load of the loudspeakers connected to a volume control may not exceed the rated power
Each of the three versions is also available in two versions
One is a power-saving,4-wire volume override (/10 models),where the override relay is activated during an emergency call
The other is a failsafe,4-wire volume override (/20 models),where the override relay is deactivated during an emergency call
The design and color are unobtrusive in any interior
Ease of installation,operation and reliability is optimized in the design
Interconnections
Screw connections
Product Specification
|
Brand |
Bosch |
|
Product Type |
Volume Controller |
|
Product Model |
LBC1400/10 |
|
Electrical |
|
|
Rated Power |
12 W |
|
Input Voltage |
100 V |
|
Attenuation Steps |
5 x 3 dB + off |
|
Frequency Response |
50 Hz to 20 kHz (-1 dB) |
|
THD |
<0.5% |
|
Current Consumption |
20 mA at 24 VDC |
|
Environmental |
|
|
Operating Temperature |
-10 ºC to +55 ºC (14 ºF to +131 ºF) |
|
Storage And Transport Temperature |
-40 ºC to +70 ºC (-40 ºF to +158 ºF) |
|
Relative Humidity |
<95% |
|
Mechanical |
|
|
Color |
White (RAL 9010) |
|
Dimensions (W x H x D) |
87 x 87 x 45.6 mm |
|
Weight |
226 g |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Dimension (MM) – W x H x D |
87 x 87 x 45.6 |
|
Unit of Measurement |
1 Piece |
|
Weight |
0.226 kg |
|
Generic Type |
Volume Controller |
|
Manufacturer Details |
Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
|
Packer Details |
Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
|
Country of Origin |
India |
