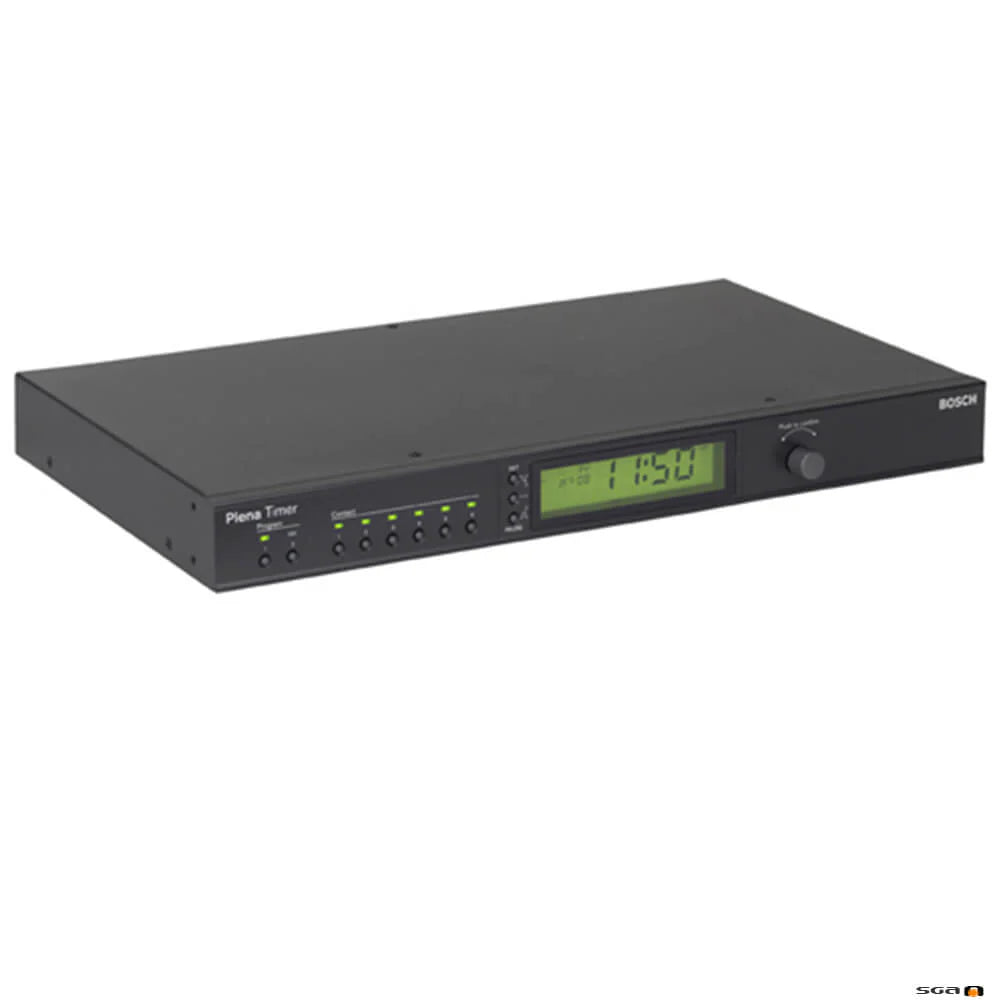

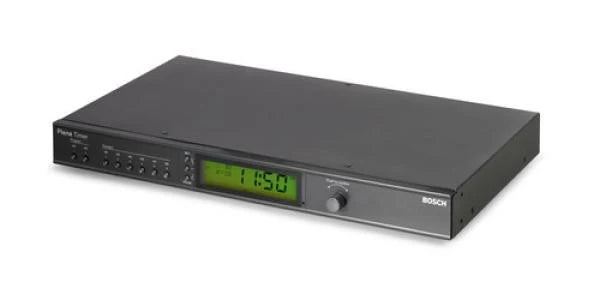

Bosch PLN-6TMW Weekly Timer featuring 2 Separate Programs, 14 Chimes, 6 Contact Outputs

BOSCH PLN-6TMW
The Bosch PLN-6TMW Plena Weekly Timer is an accurate timer for use in public address systems for regular timed messages or other signals.

It is ideally suited for schools, shopping malls and all other venues that need regularly timed messages, signals or other controls.

The PLN6TMW is ideal for connection to the LBB 1965/00 Plena Message Manager and Voice Alarm System.

Two weekly schedules are available and events can be any length, programmable with an accuracy of one minute, with no upper limit on the number of events. A pause mode enables all actions, except the clock display, to be temporarily suspended.

Each event can trigger a chime, any combination of output contacts or a change in BGM volume - ideal for attenuating the music level in the evening.

The PLN 6TMW is 1U high and rack mounted using the rack mounting brackets supplied.

• Two weekly programs
• 14 Chimes
• Six contact outputs
• Automatic summer winter time
• BGM level control
• Hold and pause function
• Unit can be programmed standalone or via PC
• Ideal partner for Plena Message Manager or Plena Voice Alarm for timed messages
• 440x312x48mm (WxDxH)
• 1U high 19" rack-mountable
• Weight 3kg.

The Bosch PLN-6TMW Weekly Timer is a sophisticated scheduling device designed to manage and control various systems and functions with precision. Here’s an in-depth look at its features and capabilities:

Introduction

The Bosch PLN-6TMW Weekly Timer is an advanced time control unit that allows users to schedule and automate events over the course of a week. It is equipped with multiple programs, chimes, and contact outputs, making it suitable for a range of applications where precise timing and control are essential.

Overview

The PLN-6TMW Weekly Timer is designed to provide reliable and customizable time-based control for various systems. It features the ability to set up two separate programs, incorporate a range of chimes, and manage multiple contact outputs. This flexibility makes it a valuable tool for environments requiring detailed scheduling and automation.

Highlights

• Dual Program Capability: Offers the ability to set up and manage two separate timing programs, allowing for complex scheduling needs.
• Variety of Chimes: Includes 14 different chimes, providing audio cues for different events or times.
• Multiple Contact Outputs: Equipped with 6 contact outputs that can be used to control various devices or systems based on the scheduled programs.
• Weekly Scheduling: Allows for detailed scheduling on a weekly basis, accommodating varying requirements for each day.
• User-Friendly Interface: Designed with an intuitive interface for easy programming and operation.

Technical Specifications

• Programs: 2 separate programs for customized scheduling.
• Chimes: 14 different chime sounds for alerts or notifications.
• Contact Outputs: 6 outputs for controlling external devices or systems.
• Timing Resolution: Capable of scheduling events with precision, down to the minute.
• Power Supply: Typically operates on standard AC power (e.g., 230V, 50/60Hz) or another specified power source.
• Display and Controls: Includes an LCD or LED display and buttons for programming and adjustments.
• Size and Mounting: Designed for easy installation, usually with options for wall or panel mounting.

Advantages

• Flexible Scheduling: Dual programs and weekly scheduling provide extensive flexibility for managing time-based operations.
• Variety of Alerts: The range of chimes allows for different audio notifications, enhancing usability and customization.
• Multiple Outputs: With 6 contact outputs, the device can control multiple systems or functions simultaneously.
• Ease of Use: The user-friendly interface simplifies programming and adjustments, reducing setup time.
• Reliable Operation: Designed for consistent and accurate performance, ensuring dependable control.

Applications

• Industrial Automation: Used in manufacturing and industrial settings to schedule equipment operations or control processes.
• Commercial Buildings: Manages lighting, HVAC systems, or other building systems based on a set schedule.
• Educational Institutions: Controls bells, alarms, or other systems in schools or universities.
• Public Facilities: Used in places like public transport hubs or large venues to manage various timed events or alerts.
• Retail Environments: Automates store opening and closing times, as well as other scheduled activities.
