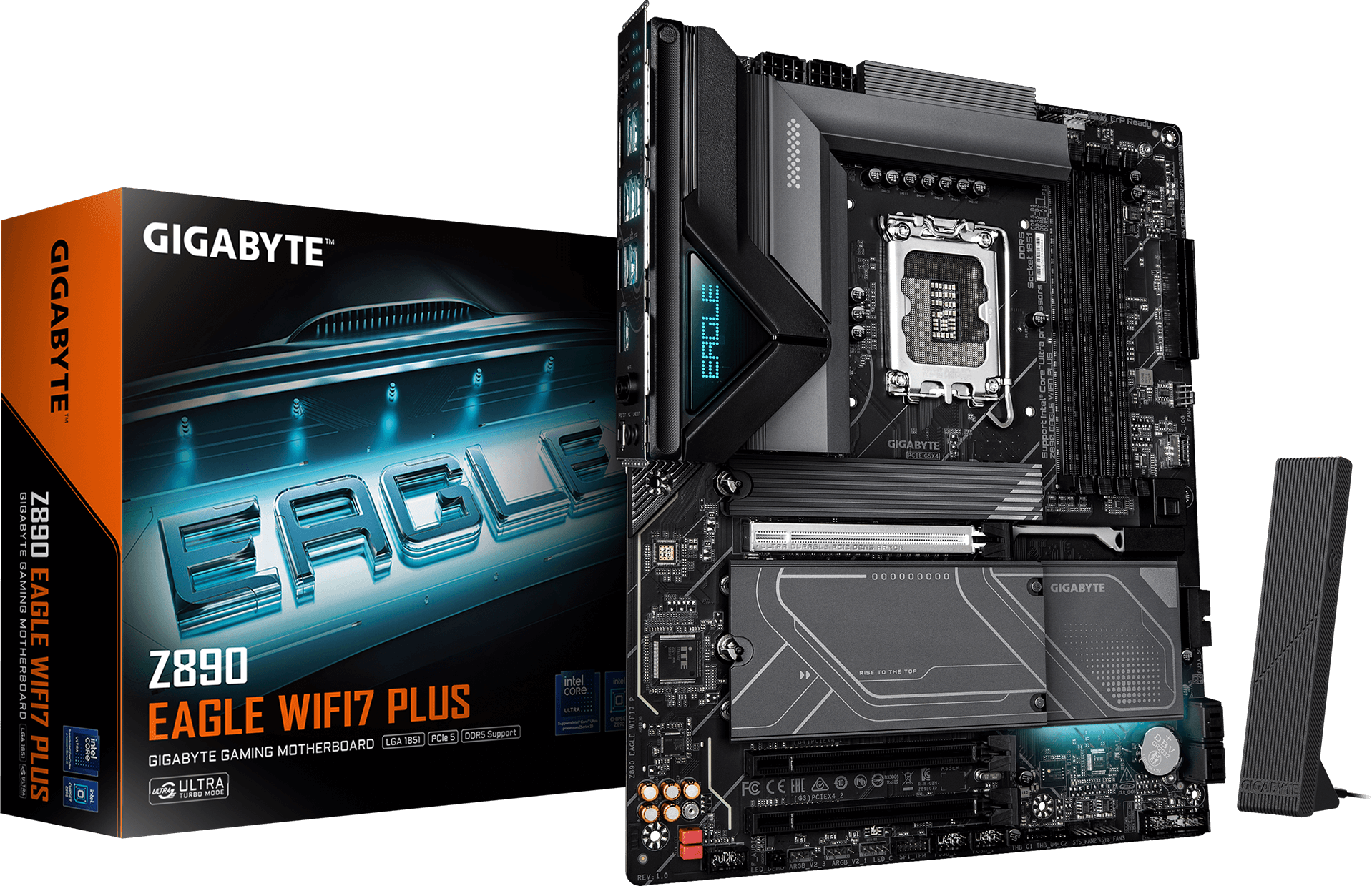

GIGABYTE Z890 EAGLE WIFI7 PLUS LGA1851 ATX Motherboard

Rs. 29,802.00
Rs. 29,802.00
Write a Review
Add to wishlist Added to wishlist
Order in the next
to get it by
Ask us any Question
Details

The GIGABYTE Z890 EAGLE WIFI7 PLUS is an ATX motherboard for Intel Core Ultra 200S Series processors on the LGA1851 socket. A 14+1+2 phase twin digital VRM, Ultra Turbo Mode performance boosting, PCIe 5.0 storage headroom and Wi-Fi 7 make it a strong all-rounder for a high-performance Intel build.

Key Features

  • Supports Intel Core Ultra 200S Series processors, with Ultra Turbo Mode for up to 40% performance boost
  • 14+1+2 phase twin digital VRM, 60A DrMOS, 2X copper PCB
  • Dual-channel DDR5, 4 DIMM slots, overclockable up to 9466 MT/s
  • 4 x M.2 slots (1 x PCIe 5.0, 3 x PCIe 4.0) with M.2 Thermal Guard
  • PCIe 5.0 x16 primary slot with reinforced PCIe UD Slot
  • Wi-Fi 7 (160MHz) with directional ultra-high-gain antenna, plus 2.5GbE LAN
  • USB4 Type-C with DP-Alt, plus front-panel 10Gbps USB-C
  • VRM Thermal Armor Advanced and UD Base Plate for comprehensive cooling
  • RGB Fusion with 1 RGB and 3 addressable RGB LED headers
  • Rear EZ buttons, Q-Flash Plus and Q-Flash Auto Scan for hassle-free building

Specifications

Brand / Model GIGABYTE Z890 EAGLE WIFI7 PLUS
Chipset Intel Z890 Express
CPU Socket LGA1851
Supported CPUs Intel Core Ultra Processors (Series 2)
Memory 4 x DDR5 DIMM, dual channel, up to 256 GB, overclockable to 9466 MT/s
Expansion Slots 1 x PCIe 5.0 x16 (PCIe UD Slot); 2 x PCIe 4.0 x4
Storage 4 x M.2 (1 x PCIe 5.0, 3 x PCIe 4.0); 4 x SATA 6Gb/s
LAN 2.5GbE
Wireless Wi-Fi 7 (160MHz), directional ultra-high-gain antenna
Audio Realtek ALC1220 Codec, WIMA audiophile-grade capacitors
USB USB4 Type-C with DP-Alt, front 10Gbps USB-C, 2 x USB 3.2 Gen 2, 3 x USB 3.2 Gen 1, 4 x USB 2.0
Display Outputs 1 x DisplayPort
Power Connector 24-pin ATX, 8+8 pin UD solid-pin CPU
RGB 1 x RGB LED header, 3 x ARGB LED headers
BIOS AMI UEFI BIOS with HyperTune AI optimization, Q-Flash, Q-Flash Plus
Form Factor ATX

Ideal For

High-performance Intel Core Ultra builds that want PCIe 5.0 storage headroom, Wi-Fi 7 and AI-assisted overclocking at an EAGLE-series price point.

Specifications are from GIGABYTE and may change without notice. Actual feature support can vary by CPU.
