Gigabyte B560I AORUS PRO AX DDR4 Motherboard

Product Overview

• Brand: Gigabyte
• CPU socket: LGA 1200
• Compatible devices: Personal Computer
• RAM memory technology: DDR4
• Chipset type: Intel B560
• Bellek Saat Hızı: 2133 MHz
• Platform: Windows
• Model name: B560I AORUS PRO AX
• Memory storage capacity: 64 GB
• Graphics card interface: PCI Express

Product Features

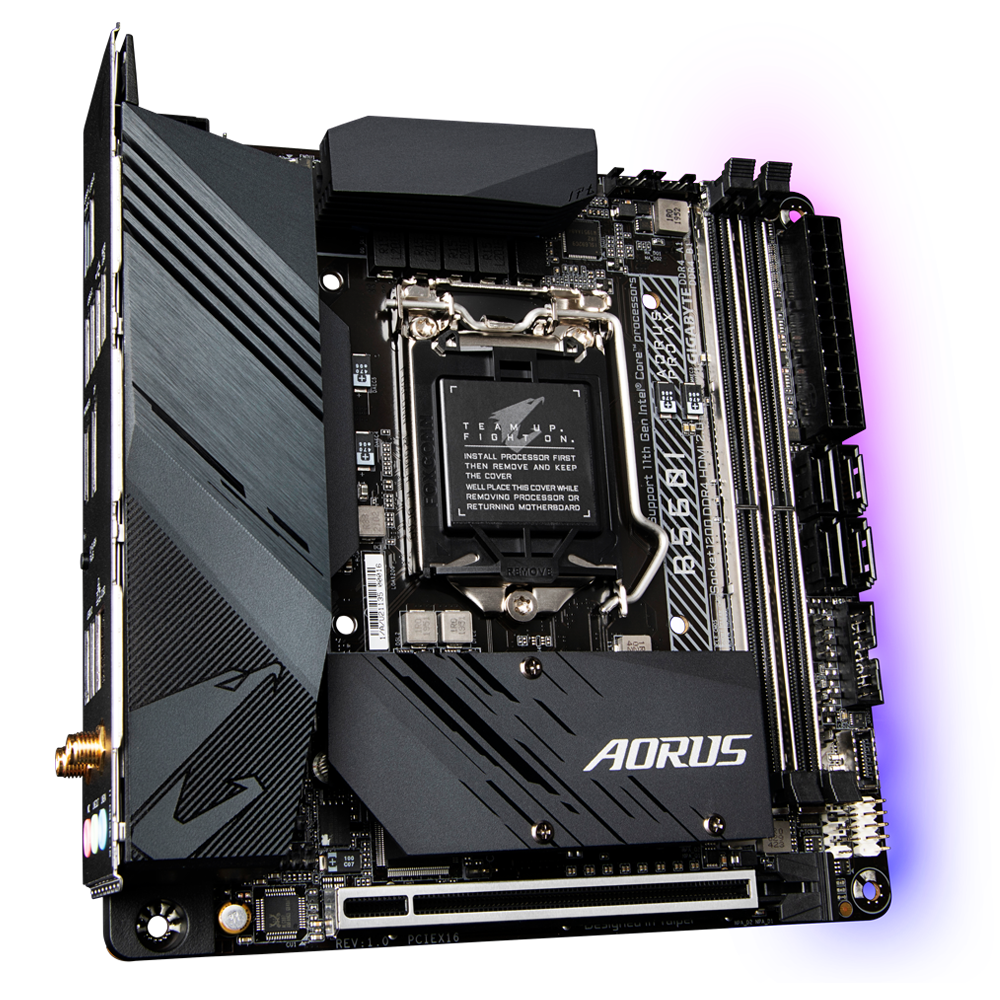

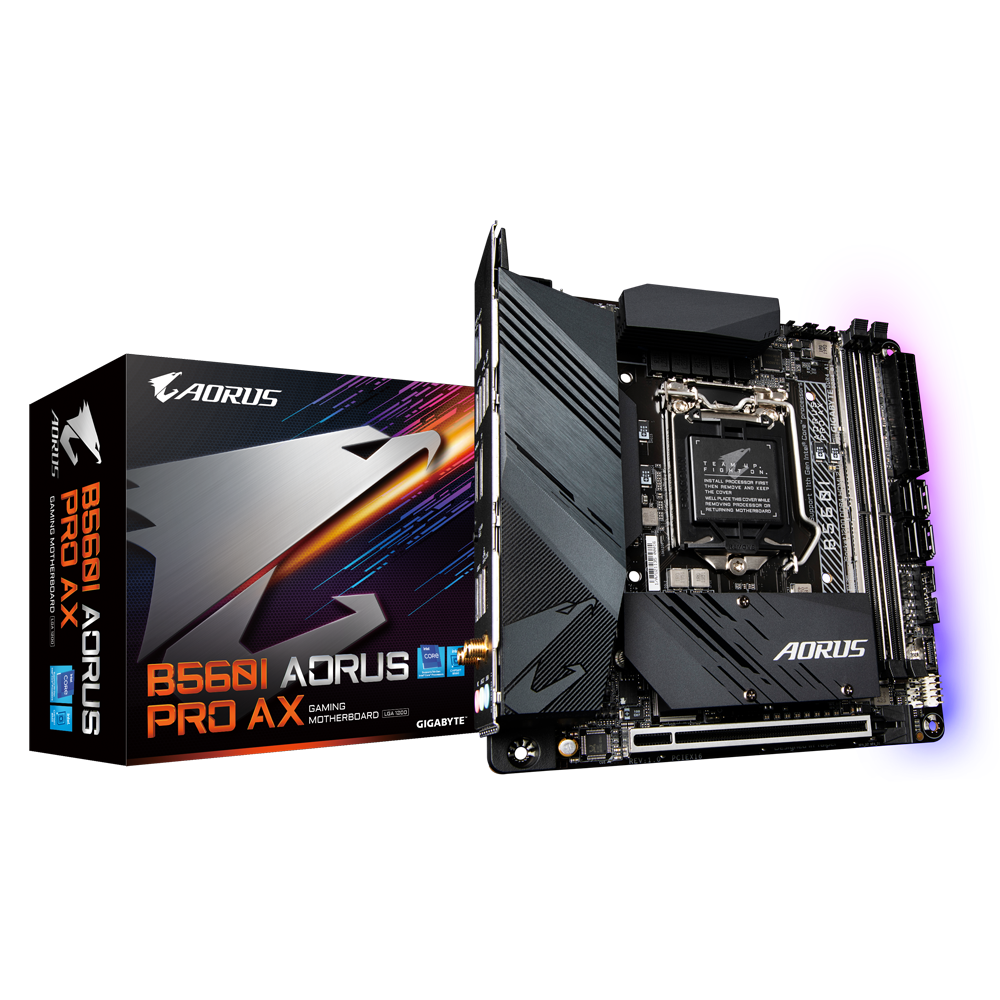

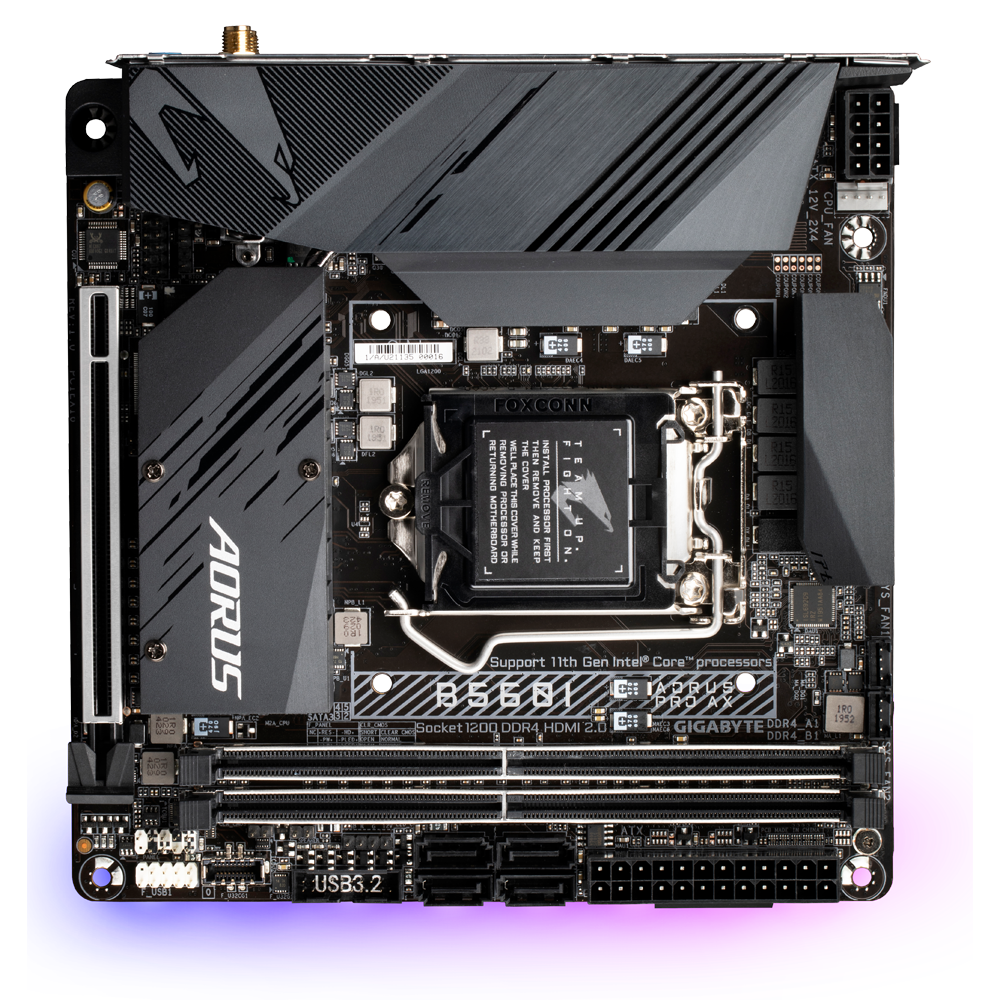

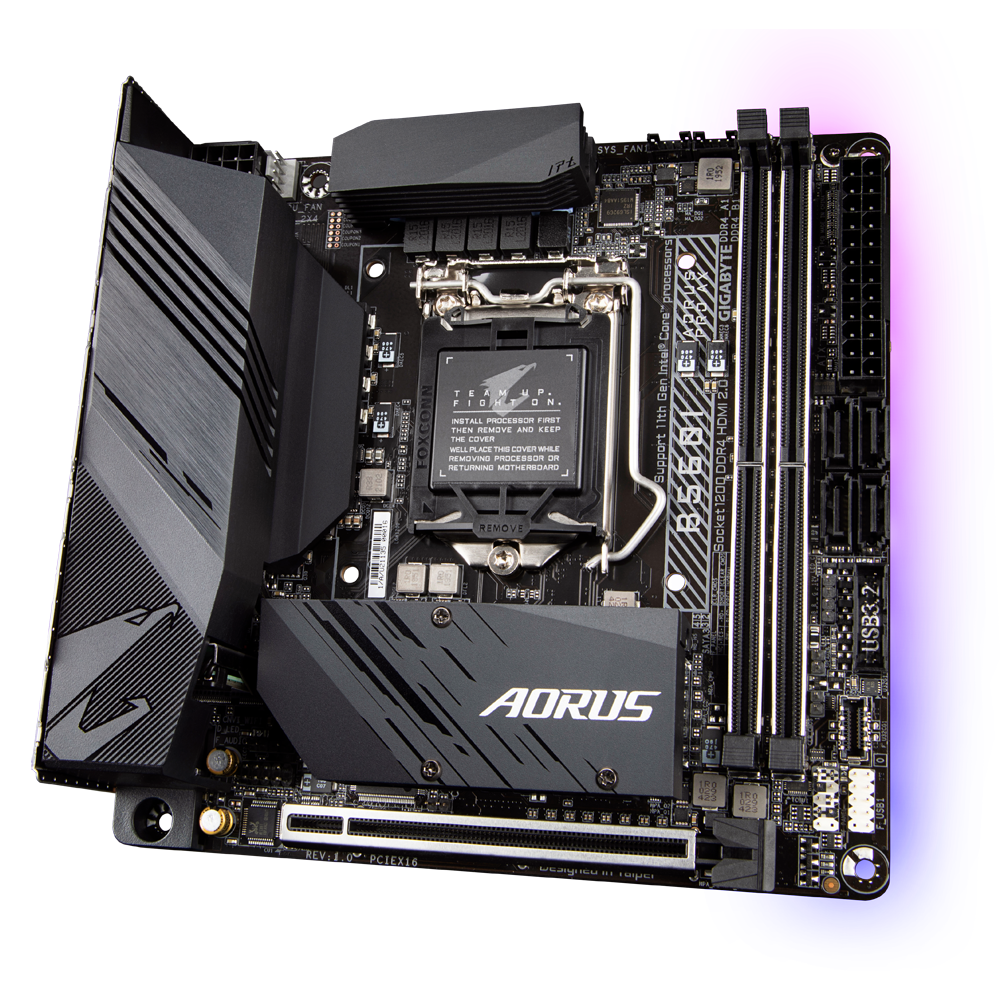

• Gigabyte B560I AORUS PRO AX Mini ITX Motherboard for Intel LGA 1200 CPUs

• CPU


  LGA1200 package:



  1. 11th Generation Intel^® Core™ i9 processors / Intel^® Core™ i7 processors / Intel^® Core™ i5 processors
  2. 10th Generation Intel^® Core™ i9 processors / Intel^® Core™ i7 processors / Intel^® Core™ i5 processors / Intel^® Core™ i3 processors/ Intel^® Pentium^® processors / Intel^® Celeron^® processors*
     * Limited to processors with 4 MB Intel^® Smart Cache, Intel^® Celeron^® G5xx5 family.
  3. L3 cache varies with CPU



  (Please refer to "CPU Support List" for more information.)


• Chipset


  1. Intel^® B560 Express Chipset


• Memory


  1. 11th Generation Intel^® Core™ i9/i7/i5 processors:
     Support for 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  2. 10th Generation Intel^® Core™ i9/i7 processors:
     Support for DDR4 2933/2666/2400/2133 MHz memory modules
  3. 10th Generation Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
     Support for DDR4 2666/2400/2133 MHz memory modules
  4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  5. Dual channel memory architecture
  6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  8. Support for Extreme Memory Profile (XMP) memory modules



  (Please refer "Memory Support List" for more information.)


• Onboard Graphics


  Integrated Graphics Processor-Intel^® HD Graphics support:



  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
     * Support for HDMI 2.0 version and HDCP 2.3.

  1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
     * Support for DisplayPort 1.2 version and HDCP 2.3

  (Graphics specifications may vary depending on CPU support.)


• Audio


  1. Realtek^® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.


• LAN


  1. Intel^® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)


• Wireless Communication module


  Intel^® Wi-Fi 6 AX200

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.1
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
     * Actual data rate may vary depending on environment and equipment.


• Expansion Slots


  1. 1 x PCI Express x16 slot, running at x16
     (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)*
     * Supported by 11th Generation processors only.


• Storage Interface


  CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*
     * Supported by 11th Generation processors only.



  Chipset:



  1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB)



  4 x SATA 6Gb/s connectors

  Intel^® Optane™ Memory Ready


• USB


  Chipset:



  1. 2 x USB Type-C^® ports, with USB 3.2 Gen 1 support (1 port on the back panel, 1 port available through the internal USB header)
  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  4. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)



  Chipset+1 USB 3.2 Gen 1 Hub:



  1. 4 x USB 3.2 Gen 1 ports on the back panel


• Internal I/O Connectors


  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 2 x system fan headers
  5. 1 x addressable LED strip header
  6. 1 x RGB LED strip header
  7. 4 x SATA 6Gb/s connectors
  8. 2 x M.2 Socket 3 connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x speaker header
  12. 1 x USB Type-C^® header, with USB 3.2 Gen 1 support
  13. 1 x USB 3.2 Gen 1 header
  14. 1 x USB 2.0/1.1 header
  15. 1 x Clear CMOS jumper
  16. 1 x chassis intrusion header



  ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

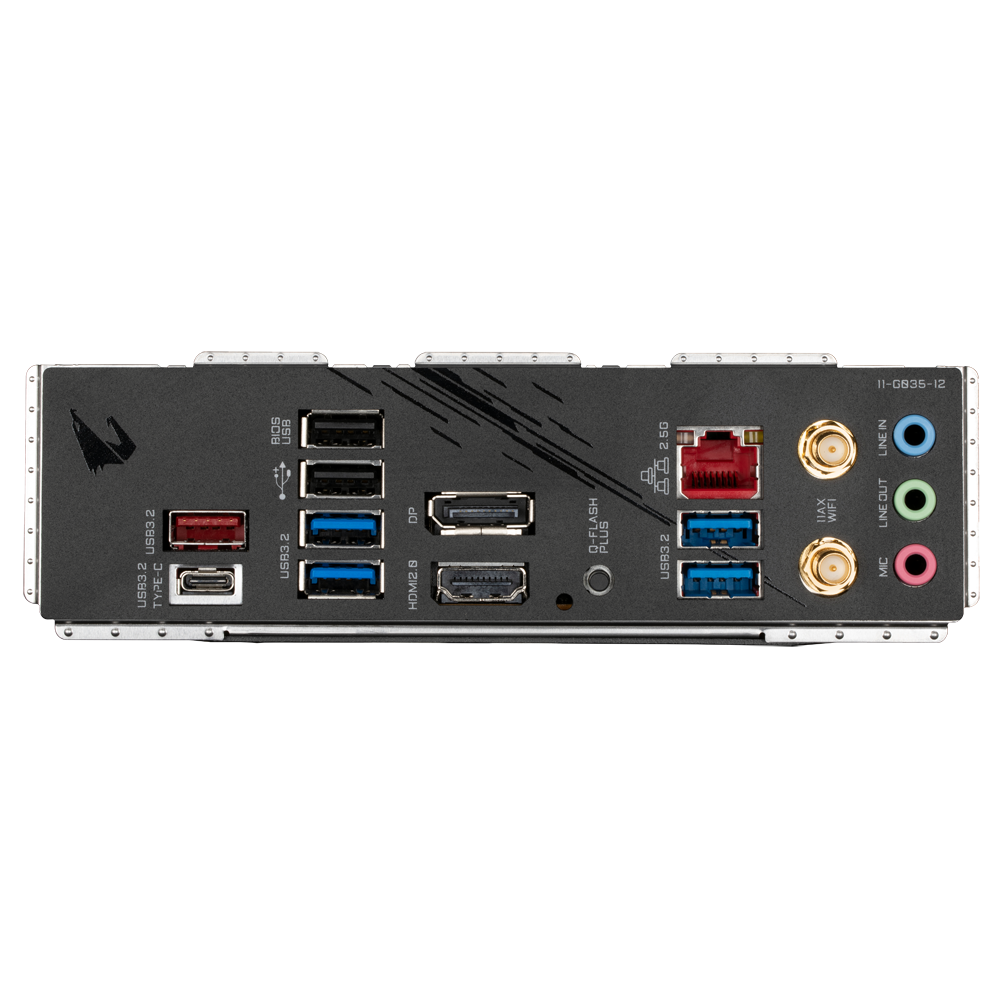

• Back Panel Connectors


  1. 1 x DisplayPort
  2. 1 x HDMI port
  3. 1 x USB Type-C^® port, with USB 3.2 Gen 1 support
  4. 1 x USB 3.2 Gen 2 Type-A port (red)
  5. 4 x USB 3.2 Gen 1 ports
  6. 2 x USB 2.0/1.1 ports
  7. 1 x Q-Flash Plus button
  8. 1 x RJ-45 port
  9. 2 x SMA antenna connectors (2T2R)
  10. 3 x audio jacks


• I/O Controller


  1. iTE^® I/O Controller Chip


• H/W Monitoring


  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Fan fail warning
  5. Fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.


• BIOS


  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


• Unique Features


  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     EasyTune
     Fast Boot
     Game Boost
     ON/OFF Charge
     RGB Fusion
     Smart Backup
     System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install


• Bundled Software


  1. Norton^® Internet Security (OEM version)
  2. cFosSpeed


• Operating System


  1. Support for Windows 10 64-bit


• Form Factor


  1. Mini-ITX Form Factor; 17.0cm x 17.0cm
