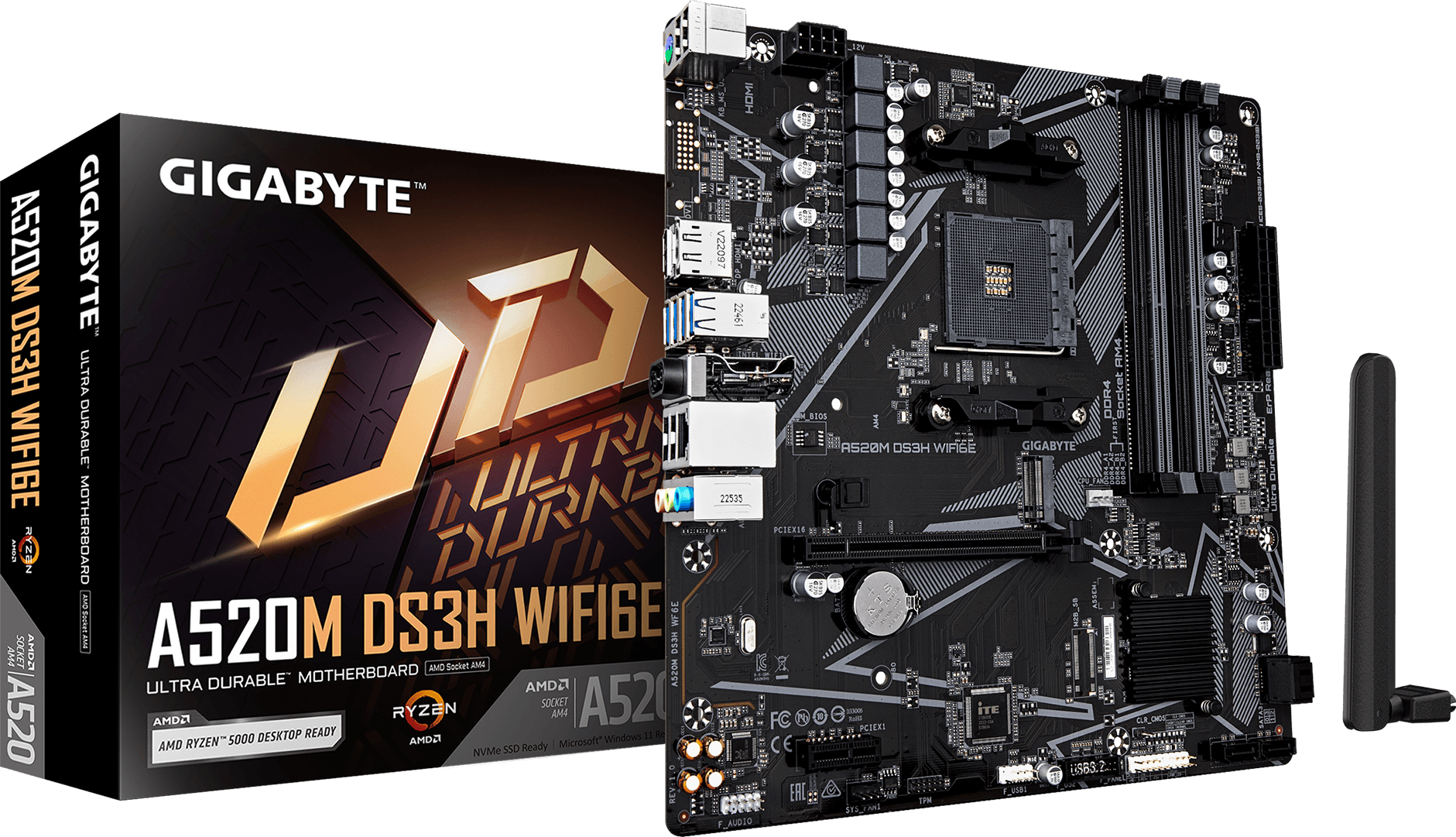

GIGABYTE A520M DS3H WIFI6E AM4 Micro ATX Motherboard

Rs. 8,776.00
Rs. 8,776.00
Write a Review
Add to wishlist Added to wishlist
Order in the next
to get it by
Ask us any Question
Details

The GIGABYTE A520M DS3H WIFI6E is an entry-level Micro-ATX motherboard for AMD Ryzen 5000, 5000G, 4000G and 3000 series processors on Socket AM4. Built on the AMD A520 chipset with onboard Wi-Fi 6E and Bluetooth, it's an affordable, connected foundation for everyday AMD desktops.

Key Features

  • Supports AMD Ryzen 5000 / 5000G / 4000G / 3000 / 3000G Series processors
  • Dual-channel DDR4, 4 DIMM slots, ECC/non-ECC support, up to 128 GB
  • Ultra Durable PCIe 3.0 x16 slot
  • NVMe PCIe 3.0 x4 M.2 connector for fast storage
  • Onboard Wi-Fi 6E (802.11ax) with WIFI EZ-Plug antenna installation
  • GbE LAN with bandwidth management
  • Rear DisplayPort and HDMI for multi-display support with Ryzen G-Series APUs
  • High-end audio capacitors with Audio Noise Guard
  • Smart Fan 6 with multiple temperature sensors and hybrid fan headers
  • Anti-Sulfur Resistor design for long-term reliability

Specifications

Brand / Model GIGABYTE A520M DS3H WIFI6E
Chipset AMD A520
CPU Socket AMD Socket AM4
Supported CPUs AMD Ryzen 5000 / 5000G / 4000G / 3000 / 3000G Series
Memory 4 x DDR4 DIMM, dual channel, up to 128 GB
Expansion Slots 1 x PCIe 3.0 x16
Storage 1 x M.2 (PCIe 3.0 x4); 4 x SATA 6Gb/s
LAN Realtek GbE
Wireless 802.11ax Wi-Fi 6E
Audio Realtek HD Audio, 8-channel
USB 4 x USB 3.2 Gen 1, 4 x USB 2.0
Display Outputs 1 x DisplayPort, 1 x HDMI 2.1
Power Connector 24-pin ATX, 8-pin solid-pin CPU
BIOS AMI UEFI BIOS
Form Factor Micro ATX

Ideal For

Budget AMD builds that want built-in Wi-Fi 6E and four memory slots without stepping up to a pricier chipset.

Specifications are from GIGABYTE and may change without notice. Actual feature support can vary by CPU.
