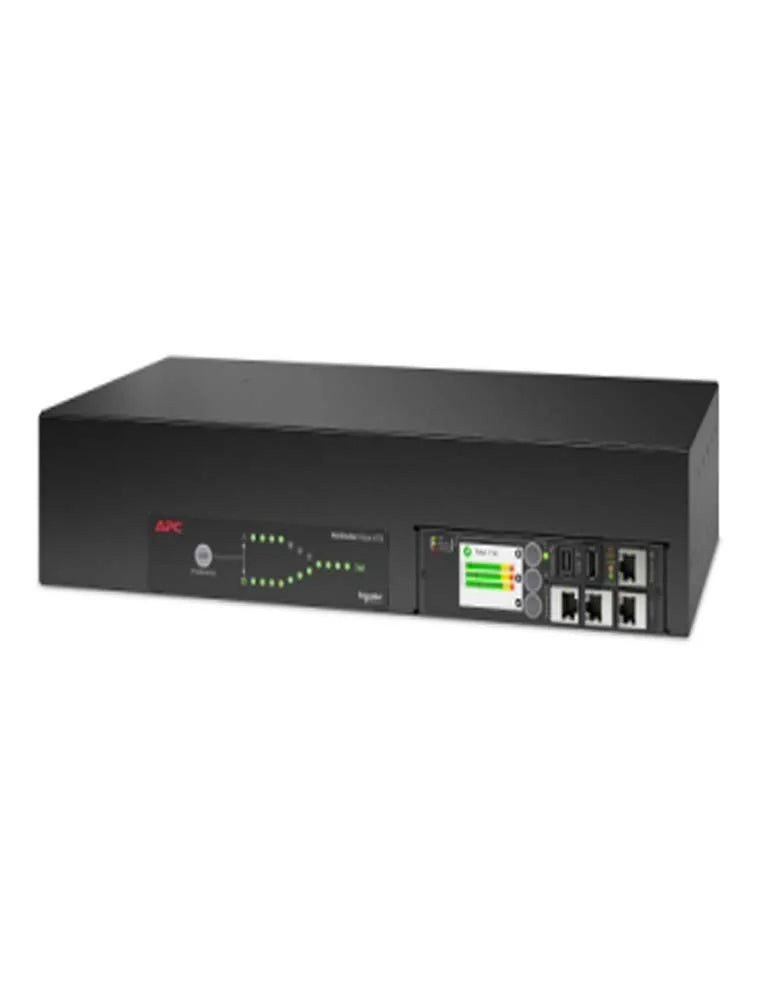

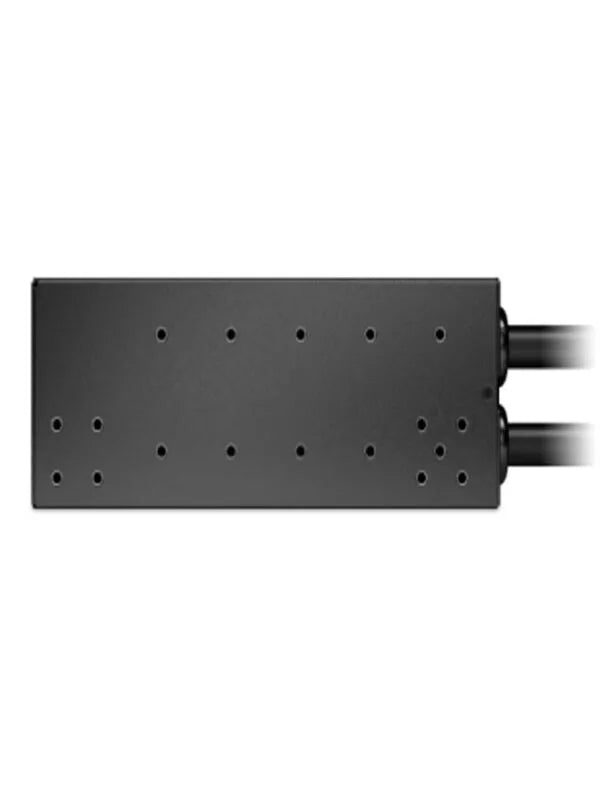

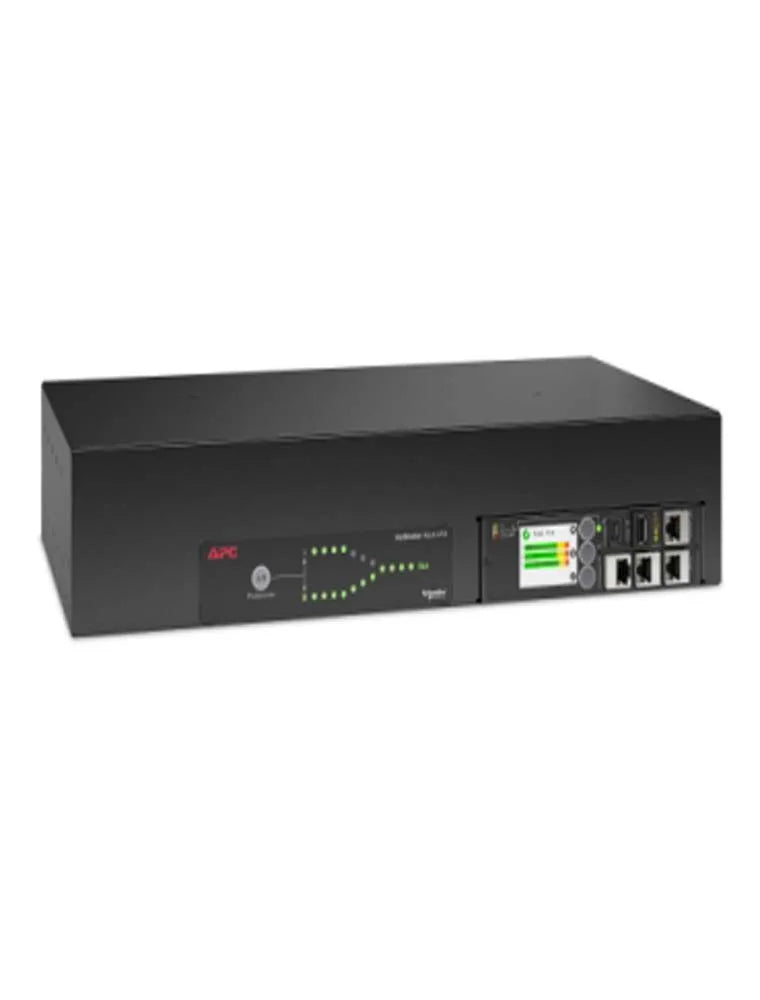

APC Netshelter Rack Automatic Transfer Switch, 2U, 32A, 230V, 2 IEC 309 IN, 16 C13, 2 C19 OUT, 50/60 Hz AP4424A

Overview

Lead time

Usually in Stock

Main

Main Input Voltage

230 V AC 1 phase

Main Output Voltage

230 V AC 1 phase

Input Connection Type

IEC 60320 IEC 60309 32 A 2P + E

IEC 60320

Number of rack unit

2U

Cable length

2.44 m

Number of cables

2

provided equipment

Mounting hardware

Rack mounting brackets

Physical

Colour

Black

height

8.8 cm

Width

43.2 cm

Depth

23.6 cm

Net weight

6.94 kg

Mounting location

Front

Rear

Mounting preference

No preference

Mounting mode

Rack-mounted

Mounting position

Horizontal

Input

Network frequency

50/60 Hz

Permissible voltage

207…253 V

Load capacity

7400 VA

Output

Max current draw

32 A

Number of power socket outlets

18

Protection type

Circuit breaker

Conformance

product certifications

EN 55022 class A

FCC part 15 class A

Standards

EN 55022 class A

FCC part 15 class A

Environmental

ambient air temperature for operation

-5…45 °C

Relative humidity

5…95 %

Operating altitude

0…10000 ft

Ambient air temperature for storage

-25…65 °C

Storage Relative Humidity

5…95 %

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

21 cm

Package 1 Width

58.4 cm

Package 1 Length

35.6 cm

Package 1 Weight

9.43 kg

Unit Type of Package 2

PAM

Number of Units in Package 2

20

Package 2 Height

120 cm

Package 2 Width

100 cm

Package 2 Length

120 cm

Package 2 Weight

201.2 kg

Contractual warranty

Warranty

2 years repair or replace
