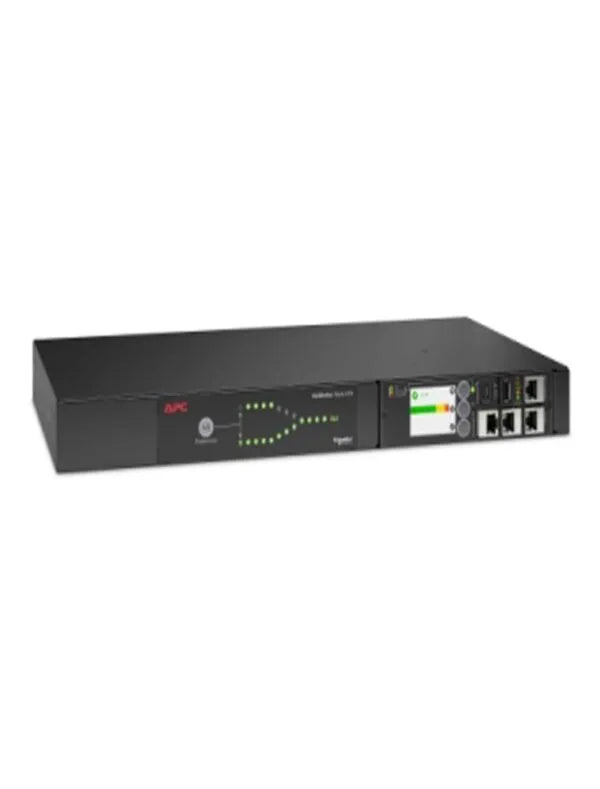

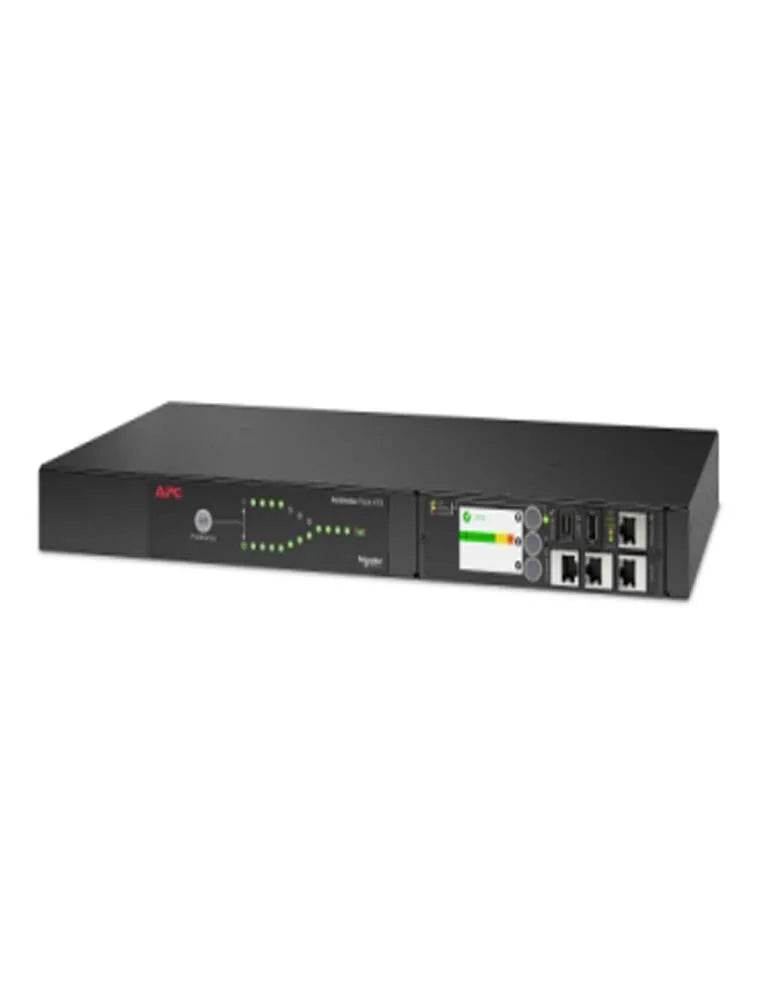

APC NetShelter Rack Automatic Transfer Switch, 1U, 16A, 230V, 2 C20 IN, 8 C13, 1 C19 OUT, 50/60Hz AP4423A

Overview

Lead time

Usually in Stock

Main

Main Input Voltage

230 V AC 1 phase

Product or component type

Automatic transfer switch

Main Output Voltage

230 V AC 1 phase

Input Connection Type

IEC 60320 C20 16 A 2P + E

Number of rack unit

1U

provided equipment

Mounting hardware

Rack mounting brackets

Physical

Colour

Black

height

4.4 cm

Width

43.2 cm

Depth

23.6 cm

Net weight

3.74 kg

Mounting location

Front

Mounting preference

No preference

Mounting mode

Rack-mounted

Mounting position

Horizontal

Input

Network frequency

50/60 Hz

[In] rated current

16 A

Permissible voltage

207…253 V

Max line current

20 A

Input current limits

20 A

Load capacity

3700 VA

Output

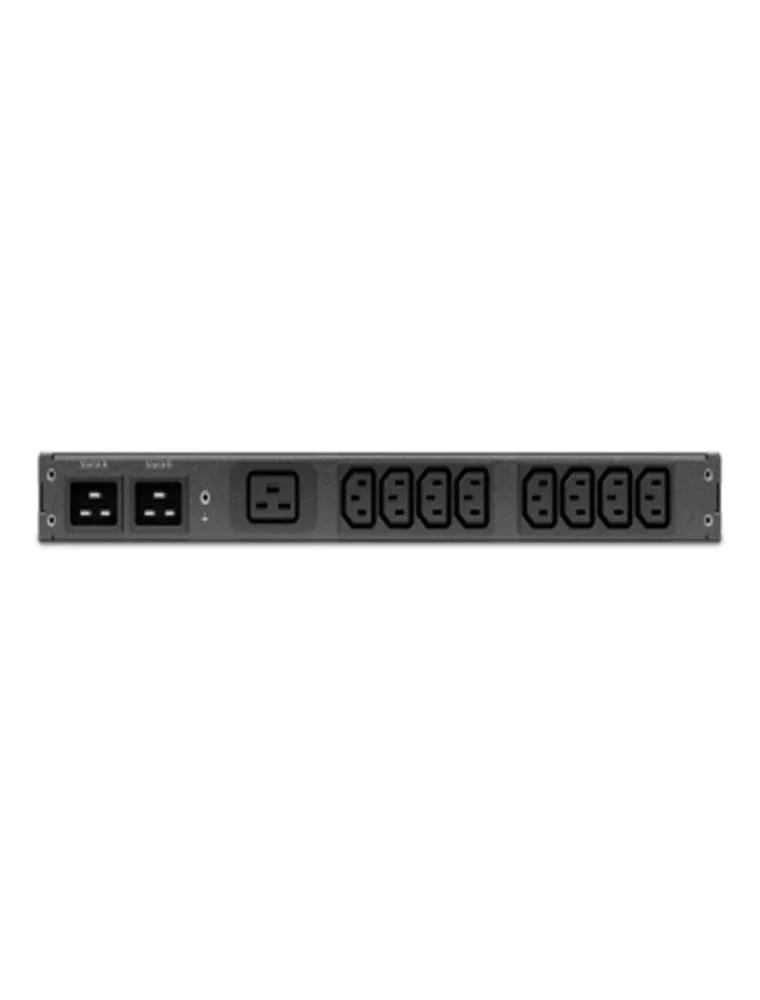

Number of power socket outlets

8 IEC 60320 C13 10 A 2P + E

1 IEC 60320 C19 16 A 2P + E

Number of power socket outlets

9

Protection type

Without circuit breaker

Power cable length

2.44 m

Conformance

product certifications

cUL listed

CE

UL listed

Standards

EN 55022 class A

FCC part 15 class A

Environmental

ambient air temperature for operation

-5…45 °C

Relative humidity

5…95 %

Operating altitude

0…10000 ft

Ambient air temperature for storage

-25…65 °C

Storage Relative Humidity

5…95 %

Storage altitude

0…15240 m

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

12.000 cm

Package 1 Width

35.500 cm

Package 1 Length

60.000 cm

Package 1 Weight

5.492 kg

Unit Type of Package 2

P12

Number of Units in Package 2

40

Package 2 Height

126.000 cm

Package 2 Width

80.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

233.000 kg

Contractual warranty

Warranty

2 years repair or replace
