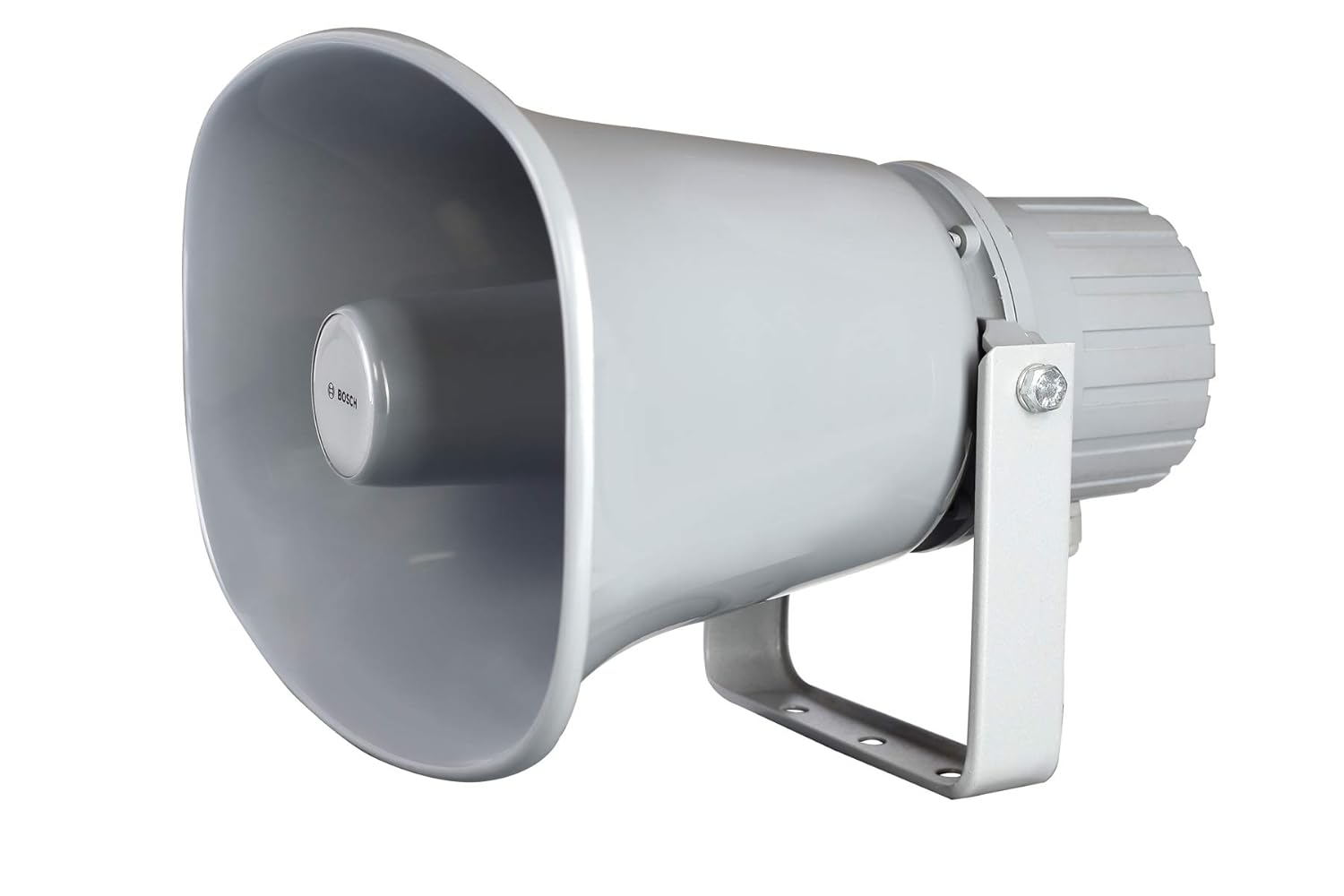

Bosch LH1-EC30-IN, 30W HORN SPEAKER, ABS Material ELLIPTICAL

Regular price
Rs. 2,599.00
Sale price
Rs. 2,599.00
Regular price
Rs. 4,699.00
Earn 1299 Reward Points. Learn More...
Terms & conditions
Order in the next
to get it by
Details

The LH1-EC30-IN is a high-efficiency horn loudspeaker providing excellent speech reproduction and sound distribution for a wide scope of outdoor applications. It is ideal for sports grounds, places of worship, parks, exhibitions, factories and open meeting areas. The LH1-EC30-IN is an elliptical horn loudspeaker and its horn and back-cover are made of ABS material. The speaker has a line matching transformer to connect to a 100V output from an amplifier. The loudspeaker has power tappings at full power, half power and quarter power to connect at different power levels. The LH1-EC30-IN model horn speaker is for direct connection to a 100 V line output and is finished in light grey (RAL 7035) color. The horn speaker is water - and dust protected. The horn loudspeaker includes a 100 V transformer with taps on the primary winding to allow different power tappings. Nominal full-power, half-power or quarter-power radiation (in 3 dB steps) can easily be selected by connecting the amplifier output to the appropriate tapping. A two meter four-core cable is fitted to the horn for connectivity. Each core is a different color, and is connected to one of the primary tappings on the transformer. Color code identification is provided on the product label. The horn loudspeaker is supplied complete with sturdy adjustable mounting brackets, allowing the sound beam to be accurately directed. Parts included 1 Loudspeaker 1 Manual Sound pressure level at rated power/1 W (1 kHz, 1 m) = 115dB/108 dB Effective frequency range (-10 dB) = 490 Hz to 4500 Hz

Product Overview

  • Brand: BOSCH
  • Item dimensions L x W x H: 35 x 35 x 35 Centimeters
  • Style: Modern
  • Noise Level: 108 dB
  • Manufacturer: BOSCH

Product Features

  • Excellent speech reproduction
  • Water-and dust protected to IP 68
  • Easy to install
  • Ideal for sports grounds, places of worship, parks, exhibitions, factories and open meeting areas
  • Simple power tapping through color code

Product Information

Brand ‎BOSCH
Item dimensions L x W x H ‎35 x 35 x 35 Centimeters
Style ‎Modern
Noise Level ‎108 dB
Manufacturer ‎BOSCH
UPC ‎800549979177
Product Dimensions ‎35 x 35 x 35 cm
Item model number ‎LH1-EC30-IN
Power Source ‎ac
Wattage ‎30 Watts
Manufacturer BOSCH
Item Dimensions LxWxH 35 x 35 x 35 Centimeters
Generic Name Full-Range
